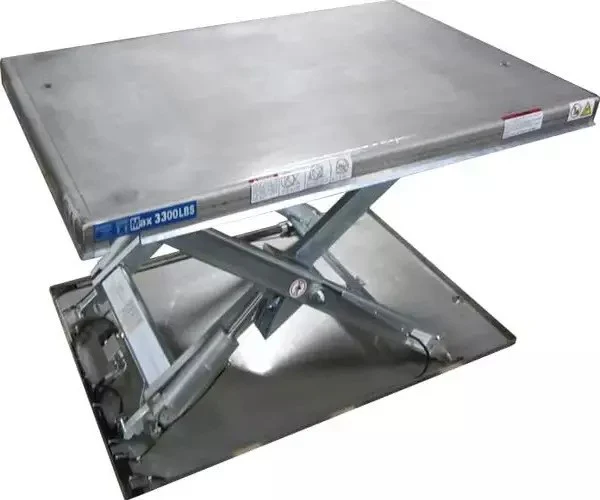

Lift Products Inc Stainless Steel LPBL-SG
Stainless Steel LPBL-SG
The Guardian Series represents the ultimate in lift table safety with features that are optional or not available on other lift tables.
Guardian Series Low Profile models have a lowered height of only 3.25". The low profile feature provides greater flexability for tall pallet applications and operator height differences. Installation costs are reduced since the need for a floor pit is eliminated.
The Stainless / Galvanized Guardian Low Profile lift table is ideal for wet applications. The LPBL-SG series includes:
- Stainless Steel Platform & Base
- Cold Galvanized Scissor Frame Assembly
- Stainless Steel Pins
- Steel-It Epoxy Cylinders
- IP55 Electrical Connections
- Remote Power Unit (RPU)
Standard Features
-
Meets and exceeds both U.S. (ANSI) and EU safety standards
-
Upper platform fitted with safety perimeter which prevents descent on contact
-
Low-tension (24V) control box with up-down buttons
-
Electric circuit reset button in case the safety perimeter is actuated
-
External power pack equipped with a relief valve against overloading
-
Compensated flow valve for controlling lowering speed
-
External power pack is supplied with 8' long hoses
-
Upper limit switch
-
115 voltage single phase standard
-
230/460 voltage three phase available
-
Single acting cylinders with drainage system
-
Check valve to stop the lift table lowering in case of hose burst
-
Safety clearance between scissors to prevent trapping during operations
-
Mechanical blocks for safe maintenance operations
-
Self-lubricating bushings on pivot points
-
Removable lifting eye(s) to facilitate installation of the lift table
Options
- Hinged Ramps
- Stainless Power Box
- Foot Controls
- Stainless Ramps
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Base Frame |
Up Speed |
|
|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||
| LPBL-10-1-SG | 30.75" | 1,100 lbs | 3.25" | 34" | 31.5" x 55" | 29.5" x 52.75" | 10 sec |
| LPBL-10-2-SG | 30.75" | 1,100 lbs | 3.25" | 34" | 39.5" x 55" | 29.5" x 52.75" | 10 sec |
| LPBL-20-1-SG | 30.75" | 2,200 lbs | 3.25" | 34" | 31.5" x 55" | 29.5" x 52.75" | 18 sec |
| LPBL-20-2-SG | 30.75" | 2,200 lbs | 3.25" | 34" | 39.5" x 55" | 29.5" x 52.75" | 18 sec |
| LPBL-30-1-SG | 29.5" | 3,300 lbs | 3.63" | 33.13" | 31.5" x 61" | 29.5" x 52.75" | 25 sec |
| LPBL-30-2-SG | 29.5" | 3,300 lbs | 3.63" | 33.13" | 39.5" x 61" | 29.5" x 52.75" | 25 sec |
