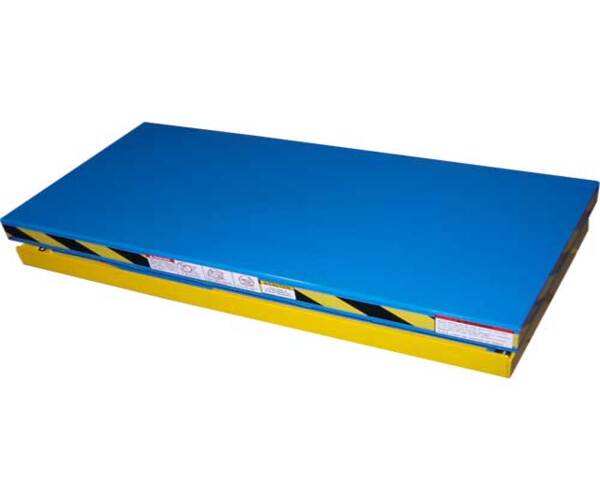

Lift Products Inc M22/M33 Lift Tables
M22/M33 Lift Tables
The Max-M22/33 ergonomic scissor lift table incorporates all the popular features of the time-tested Max-Lift premium lift table into an economical quality lift table that competes handily with lower priced tables on the market.
The Max-M22/33 has a 2,200 or 3,300 lb capacity with a 36" vertical travel. There are 4 standard top sizes available with others available upon request.
Features high quality camrollers, pivot pins and bearings. All welded construction meets AWS standard service. The Max-M22/33 conforms to or exceeds ANSI MH 29,1-1994.
Standard Features
-
High quality Camrollers, Pivot Pins and Bearings
-
4 Standard Tops Available (others upon request)
-
Tables conform to or exceed ANSI MH 29.1-1994
-
Life-time lubricated bearings
-
Internally mounted 1.5 HP 115 Volt TENV motor. 115 Volt operating control voltage.
-
NEMA constant pressure. Magnet backed up/down push button control station with 10' straight cord.
-
NEMA - 1 prewired controls and electrical connectors. Control box contains contactor and control transformer.
-
High quality fit and finish
-
10 ft. power cord. (Connector not included)
-
Hard chrome plated, pollished shafting and hydraulic cylinder piston rods.
-
Surface degreased, descaled, and finished with Safety Yellow and Blue color.
-
Smooth steel top with yellow and black safety stripes.
-
S.A.E. hoses and fittings.
-
Internal gear pump with check valve, relief valve, solenoid valve.
-
Includes hydraulic oil and filter.
Options
-
Foot Control Switch
-
Accordion Skirting
-
Semi-Live Dolly Jack
-
Caster Frame Assembly
-
Custom Top Sizes
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size | Base Frame |
Up Speed |
Voltage | Ship Weight |
||
|---|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | Min | Max | |||||||
| M22-36 | 36" | 2,200 lbs | 7.25" | 43.25" | 24"x48" | 42"x60" | 24"x48" | 18 sec | 115 | 780 lbs |
| M33-36 | 36" | 3,300 lbs | 7.25" | 43.25" | 24"x48" | 42"x60" | 24"x48" | 30 sec | 115 | 810 lbs |
