Lift Products Inc Guardian Lift-N-Spin
Guardian Lift-N-Spin

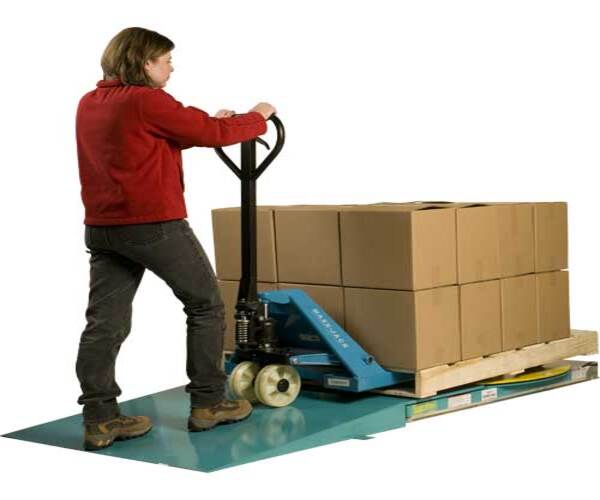

With a lowered height of only 4.25", The Lift-N-Spin can be loaded with a manual or electric pallet truck. This is accomplished by the exclusive auto-transition plate which provides a smooth surface from the ramp onto the rotating top. Once the lift is raised 1/4" the plate automatically lowers to allow the spinning of the rotating top. When the table is fully lowered, the plate automatically raises again to provide a smooth surface to load the next pallet.

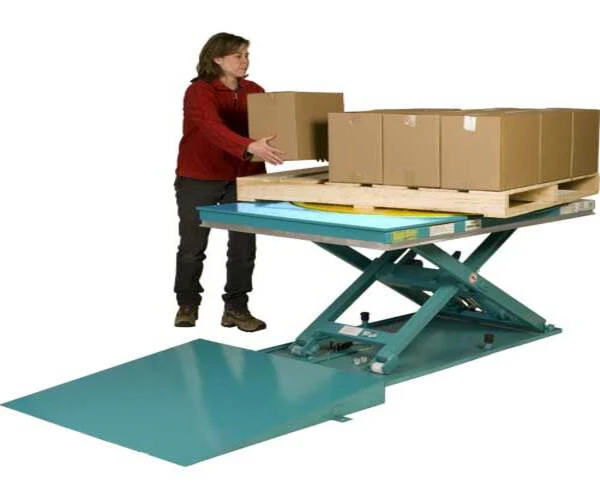

The Lift-N-Spin has a raised height of 35" providing an ideal height for work positioning applications. The rotating top avoids the need to walk around or reach across.
The Remote Power Unit features a 1 HP motor. This is a highly efficient and quiet pump motor combination. A three-button control box has 115-volt single phase and runs on a 20 amp circuit. 230/460 3 phase is optional.
Standard Features
- Meets and exceeds both U.S. (ANSI) and European safety standards
- Upper platform safety perimeter bar prevents descent on contact
- Electric circuit reset button in case the safety perimeter is actuated
- Low-tension (24V) control box with up-down buttons
- External power pack equipped with a relief valve against overloading
- Remote Power Unit supplied with 8' long hoses
- Compensated flow valve for controlling lowering speed
- Mechanical blocks for safe maintenance operations
- 115 voltage single phase standard
- Upper limit switch
- Single acting cylinders with drainage system and check valve
- Safety clearance between scissors to prevent trapping during operation
- Self-lubricating bushings on pivot points
- Removable lifting eye(s) to facilitate handling and installation
Options
-
Ramps
- Square Top
- Swing Gate
- Steel-It Paint
| Base Model |
Vertical Travel |
Capacity | Height | Platform Size |
Up Speed |
Base Frame |
Motor | Voltage | |
|---|---|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||||
| LPBL-20-2-LS | 30.75" | 2,000 lbs | 4.25" | 35" | 45" Dia. | 18 sec | 29.5" x 52.75" | 1HP | 115 |
