Lift Products Inc MXIBH Walkie Stackers

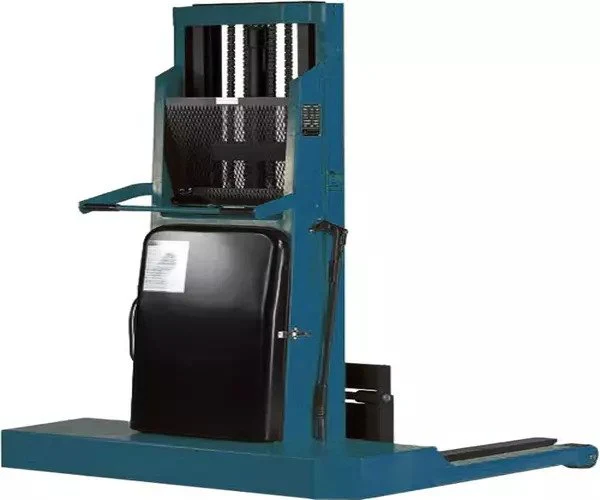

MXIBH Walkie Stackers
The MXIBH series is a manual push / powered lift series of trucks. Ideally suited for those applications with lighter loads and short travel distances that do not require a self-propelled unit. Whether its pallet handling or special use with one of our many options, this is an inexpensive way to solve your material handling or ergonomic needs.
The adjustable fork models, MXIBH-A and MXIBH-T, with outboard straddle legs allow the lifting of pallet loads with bottom boards. This series also allows greater lift heights of up to 12 feet and can handle most standard pallets.
The rigid fork models, MXIBH-R, are suited for those requirements such as lifting wire baskets, containers or pallets with open bottoms. This design allows for close access to the load for the outrigger is located under the fork.
Standard Features
-
12 volt electrical power
-
Built-in battery pack and charger
-
Interlocked channel and I beam mast
-
Full filtration hydraulic system
-
Dual lift chains
-
Key lock
-
Dual adjustable floor locks
-
Certified to be OSHA compliant
-
Premium steel frame construction
-
Maneuverability in tight areas
-
Shaft type forks
-
Chrome plated lift cylinder
-
Pressure compensation valves
-
Continuously welded chassis
-
No-drift check in neutral
-
Built-In relief valve
-
Screen mast guard
-
One piece door cover
Options
- Lowering Alarm
- Battery Discharge Meter
- Smart Charger
- Key Switch
- Remote Lift/Lower
- Ram
- Roller Bed Platform
- 36"-48" Wide Fork Carriage
- 3" Tall Load Wheel
- Phenolic Casters
- Poly Casters
- AC Pump Motor System
- ITA Class II Carriage
- ITA Class II Forks
- 36"-60" Long Forks
- 3" Wide Straddle Legs
- Straddle ID/OD Change
- Straddle Length Change
- "V" Groove Casters
- Die Puller
Specifications
| Model | Load Center |
Cap. (lbs) | Lift | Height | Fork OD |
Straddle | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Std | Max | Std | Max | Col | Ext | ID | OD | |||
| MXIBH-R | 18" | 1,000 | 2,000 | 60" | 84" | 72" | 73.5" | 26" | 17" | 24" |
| MXIBH-A | 18"-24" | 1,000 | 2,500 | 57" | 84" | 72" | 74" | 6"-24" | 26" | 33" |
| MXIBH-T | 18"-24" | 1,500 | 2,500 | 96" | 144" | 69" | 116" | 9.75"-28" | 30" | 38" |
