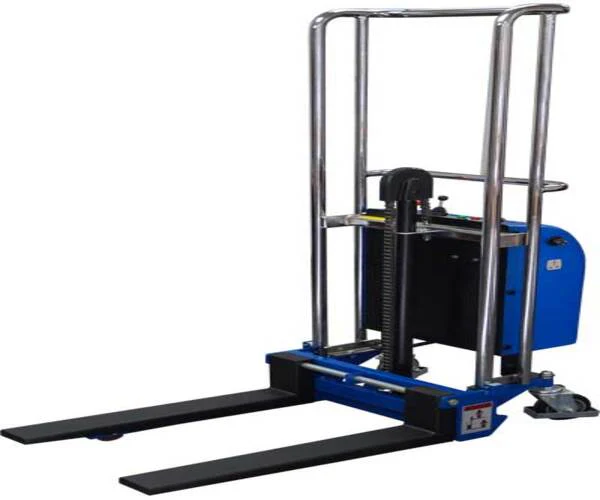

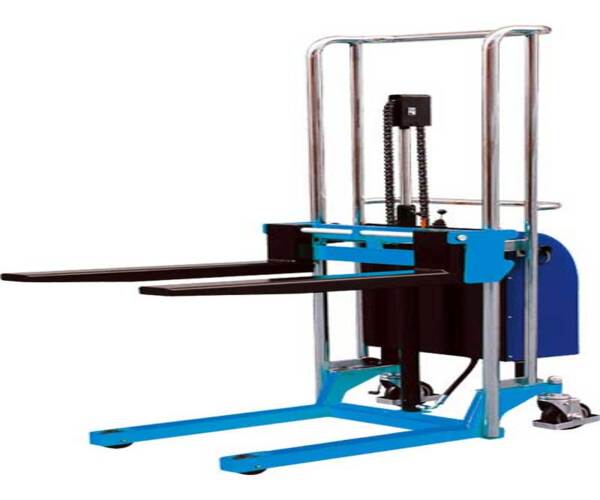

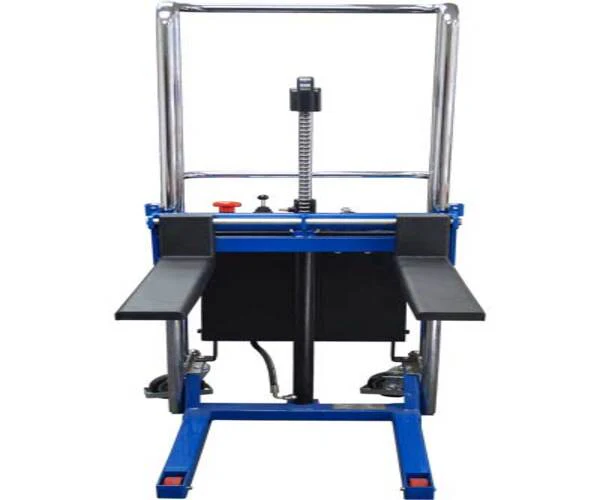

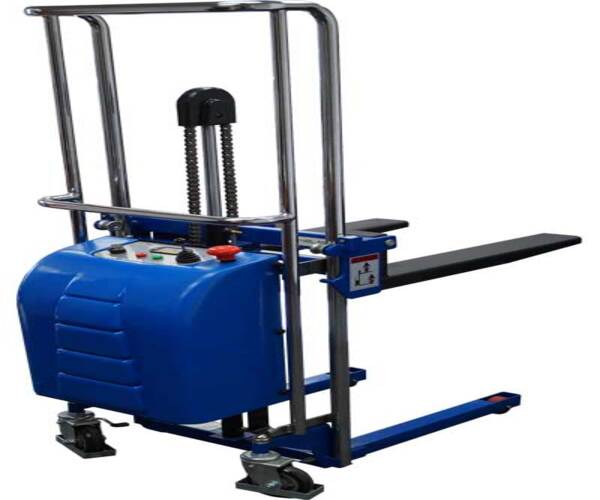

Lift Products Inc MMSE Electric Mini Lift
MMSE Electric Mini Lift
The Maxx-Mini Lifter is a ergonomically friendly lifter used for a variety of applications. Whether it's placing small pallets or containers from shelving, placing loads on work benches, or used as a work positioner; it's light tubular construction makes it easy to maneuver.
The Maxx-Mini Lifter's overall compact design allows it to get into the tightest of spaces. The battery operated lift includes a 12 volt battery and automatic on-board charger.
The lift comes standard with 22" long adjustable forks, a 29.5" x 22.8" chrome slide on platform is optional for applications where a platform is preferred.
Lift is accomplished by electrically pumping hydraulic fluid into the cylinder. As the cylinder extends, it elevates a mounted chain pulley that is attached to the platform. The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright.
Standard Features
-
Lift / Lower Stick
-
Key switch
-
Battery discharge indicator
-
Charging lights
-
Emergency stop switch
-
Built-in automatic charger and cord
-
12V deep cycle maintenance free battery
-
(2) rear swivel casters with brakes
-
(2) front rigid casters
-
Chrome plated lift cylinder
-
Cylinder overload protection
-
Smooth steel top with backrest
-
Chain pulley quietly lifts platform
- Push handle
- Slide-On Platform
- Variable Speed Lowering Control
Specifications
| Model | Vertical Travel |
Capacity | Load Center |
Lowered | Straddle | Lift Speed |
Overall Height | Ship Weight |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rigid | Adj. | ID | OD | Col | Ext | ||||||
| MMSE-30 | 58" | 660 lbs | 12" | 3.1" | 1.8" | 14.5" | 18.8" | 14s | 67.8" | 72" | 272 lbs |
