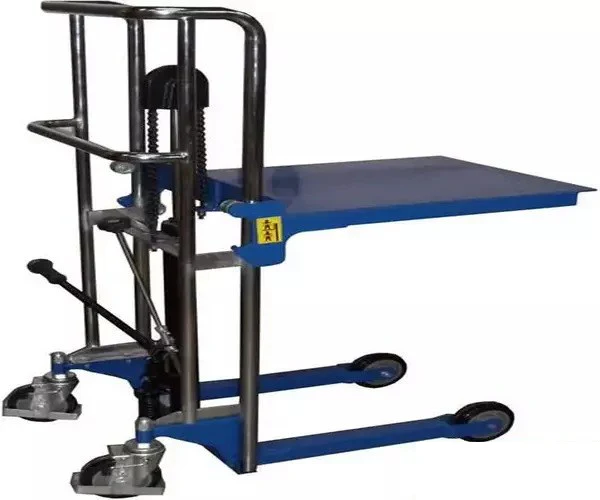

Lift Products Inc Maxx-Mini-Lift Tote & Platform Lift
Maxx-Mini-Lift Tote & Platform Lift
The Maxx-Mini-Lift is a light weight and highly maneuverable platform lift that is ideal for order picking and general material handling. Its quick lift manual foot pump with fold up pedal allows for easy height adjustment.
With a capacity of either 440 or 660 lbs, The Maxx-Mini-Lift can handle most light material handling jobs. It features polyurethane wheels with brakes on the swivel casters in the rear and rigid front casters. The reliable hydraulic lift cylinder is chrome plated and includes overload protection.
Lift is accomplished by pumping hydraulic fluid into the cylinder. As the cylinder extends, it elevates a mounted chain pulley that is attached to the platform.
The platform rolls up the dual steel uprights in a secure fashion with three points of contact per upright. An adjustable release valve allows for controlled descent of the platform.
Standard Features
-
(2) rear swivel casters with brakes
-
(2) front rigid casters
-
Variable lowering speed
-
Rubber traction foot pump
-
Foot pump folds up for storage
-
Chrome plated lift cylinder
-
Cylinder overload protection
-
Smooth steel top with backrest
-
Chain pulley quietly lifts platform
- Push handle
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Pumps To Lift |
Overall Height |
Ship Weight |
|
|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||
| MMS-20 | 25" | 440 lbs | 8" | 33" | 24" x 20" | 15 | 38" | 99 lbs |
| MMS-30 | 44.1" | 660 lbs | 8.9" | 53" | 25" x 22.8" | 49 | 57.5" | 183 lbs |

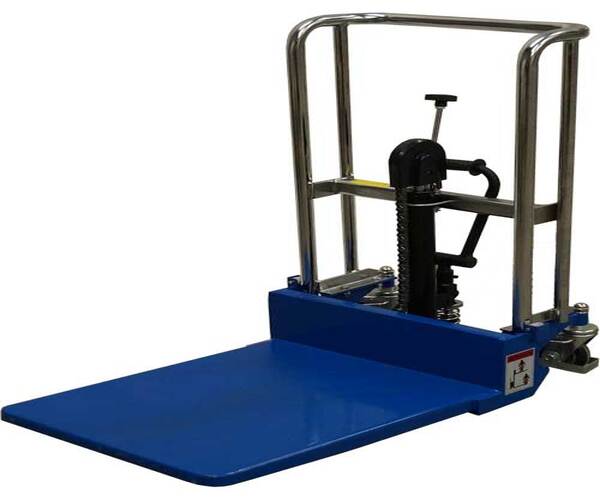

More Images
