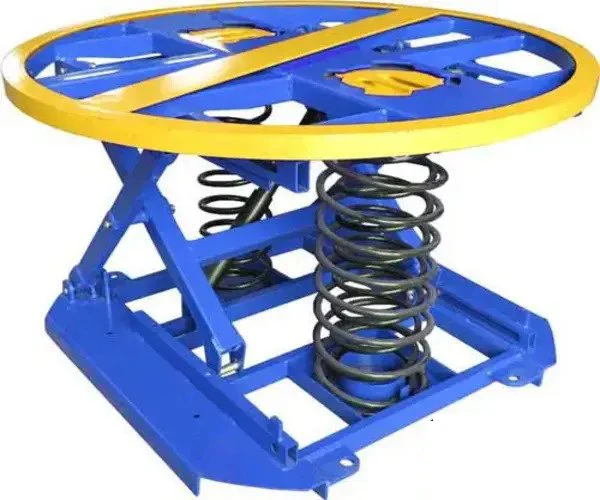

Lift Products Inc LPSL Spring Level Loader
LPSL Spring Level Loader
The Spring Level Loader is an economical solution for pallet building and work positioning for many applications. Requiring no power, the positioner comes with three springs for maximum load weight leveling. Easily remove one or two springs for lighter load requirements.
As weight is added to the Spring Level Loader, it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the platform. Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
Load weight range is 440 lbs. to 4,400 lbs. The standard turntable allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of the spring level loader.
Options
- Solid Top
-
Skirting
-
Air Bag
-
Rotation Brake
Specifications
| Model | Vertical Travel |
Capacity (lbs) | Height | Platform Size |
Base Frame |
Ship Weight |
||
|---|---|---|---|---|---|---|---|---|
| Min | Max | Lower | Upper | |||||
| LPSL-44 | 18.5" | 440 | 4,400 | 9.5" | 28" | 43" Dia. | 36.6" x 45.25" | 460 lbs |

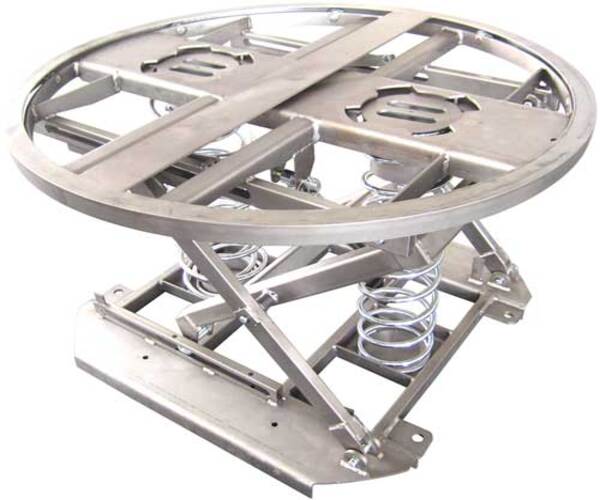

More Images
