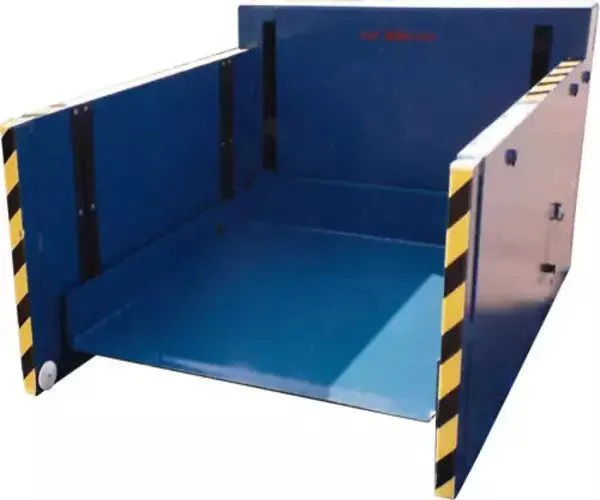

Lift Products Inc Level Lifter
Level Lifter
The Level-Lifter ground entry lift table is a unique product for applications where a pit mounted lift table is required but not practical. Thin side walls allow for easy access to the product being handled. The Level-Lifter features an exclusive 4-point lift system which is ideal for handling unstable loads where deflection of the table top would be undesirable.
A lowered height of 0.5", versus 7" or more for most conventional lift tables, brings the height of the top level to a more accessible work height.
Loads can be adjusted to individual comfort level through the use of standard pushbutton or optional foot switch control. Narrow sides allow easy access for loading and positioning
Standard Features
-
Photo eye to interrupt lowering in event of obstruction
-
0.5" plate steel platform
-
Exclusive 4-point lift system offers minimal load deflection
-
1.5HP triple duty motor
-
Single stage hydraulic cylinder
-
Gear type pump and recessed 115V receptacle
-
Hydraulic velocity fuse
-
Push button magnetic backed hand controls
-
Upper travel limit switch
-
2.5" wide enclosed sides minimizes reaching
-
Locking platform pins makes unit portable
-
3" beveled platform lip for smooth entry
Options
-
Squaring Board
- Stainless Steel
- Foot Controls
Specifications
| Base Model |
Vertical Travel |
Height | Capacity (lbs) |
Platform Size |
Overall Size |
Motor | |
|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||
| LL-24-4450 | 23.5" | 0.5" | 24" | 44" x 50" | 52" x 66" | 1.5HP | |
| LL-30-4450 | 29.5" | 0.5" | 30" | 44" x 50" | 52" x 66" | 1.5HP | |

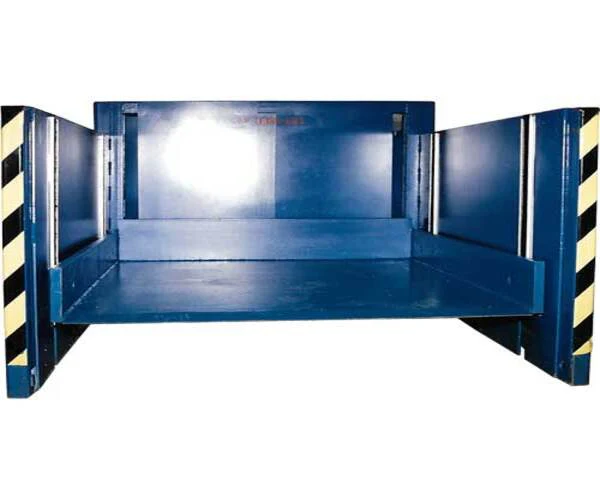

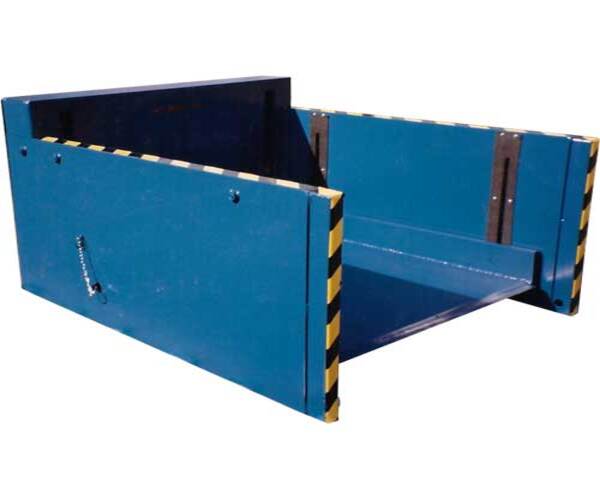

More Images
