Vestil Manufacturing Corp Thin Spins
Vestil Manufacturing Corp Thin Spins

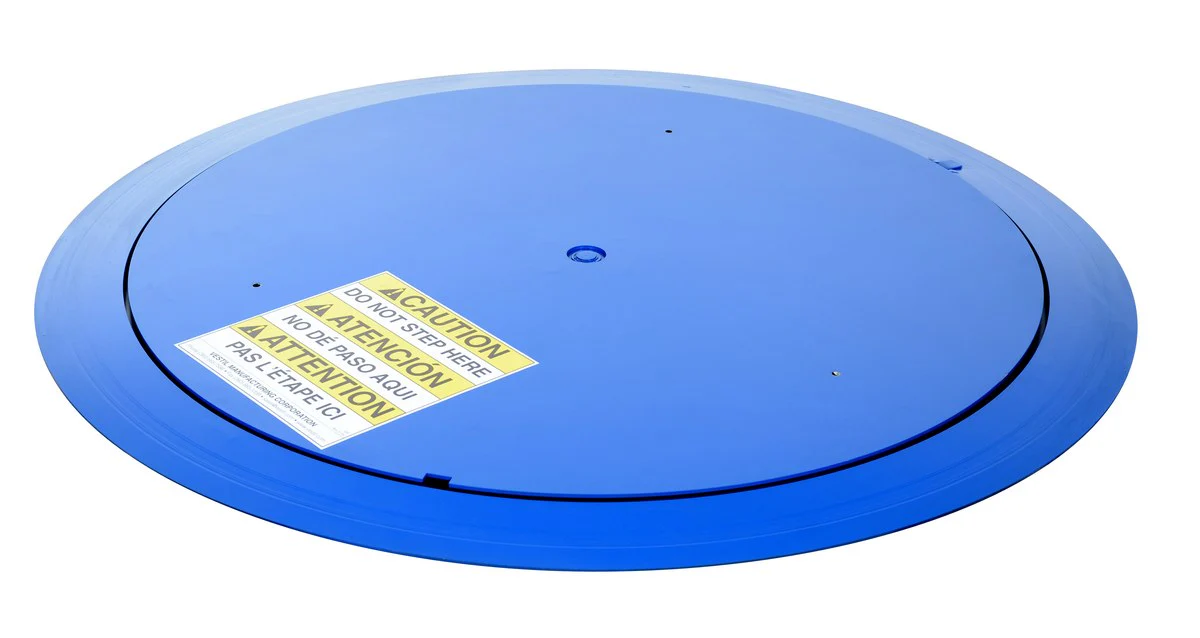

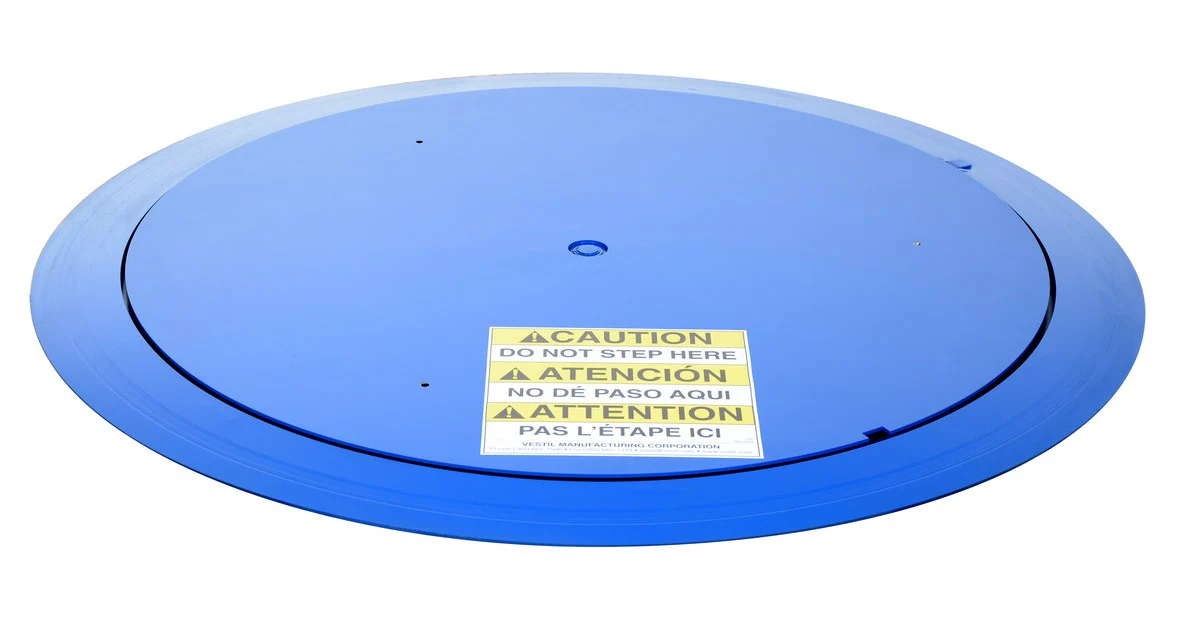

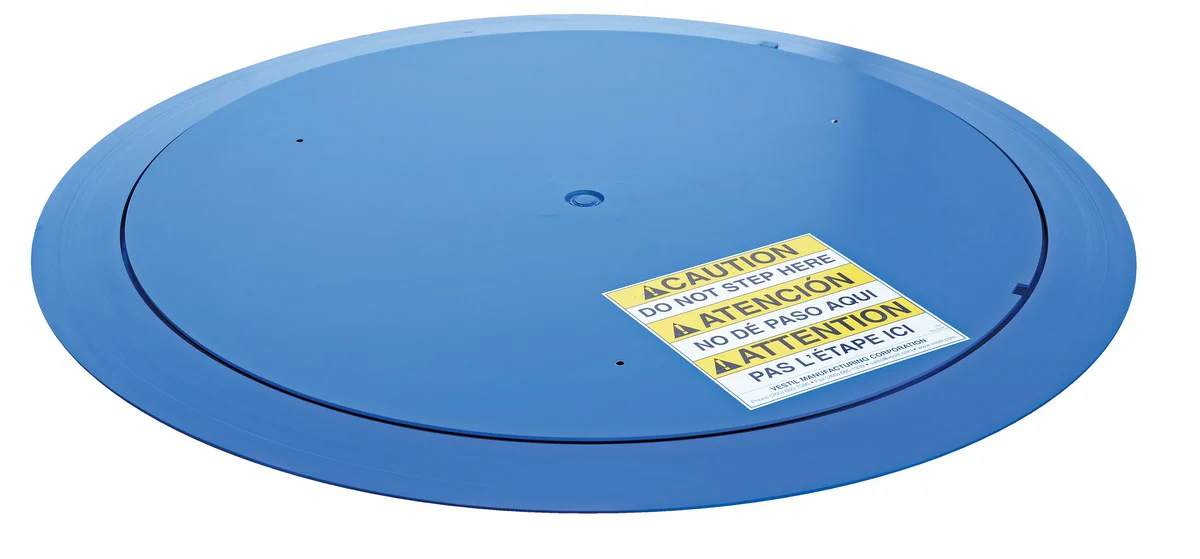

When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.
* Low-Profile design is ideal for use with Pallet Trucks
Optional Lifting Loop:
An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.
- Precision ball bearings allow for manual 360 degrees rotation
- Locking device prevents unnecessary rotation
- Pallet truck loadable due to its sleek overall height
- Unique design works well when there is minimum floor space
Manuals
LP-4000
Owners Manual
Testing Certificates
LP-4000T-45
More Images
Vestil Manufacturing Corp Thin Spins
Vestil Manufacturing Corp Thin Spins
When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory.
* Low-Profile design is ideal for use with Pallet Trucks
Optional Lifting Loop:
An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.
- Precision ball bearings allow for manual 360 degrees rotation
- Locking device prevents unnecessary rotation
- Pallet truck loadable due to its sleek overall height
- Unique design works well when there is minimum floor space
Manuals
LP-4000
Owners Manual
Testing Certificates
LP-4000T-45
