Vestil Manufacturing Corp Leveling Jacks
Vestil Manufacturing Corp Leveling Jacks

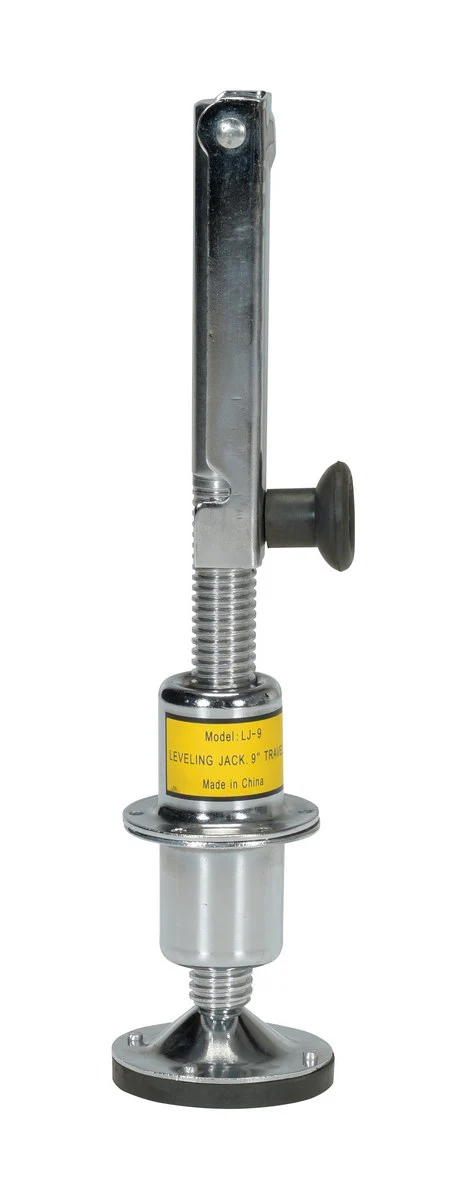

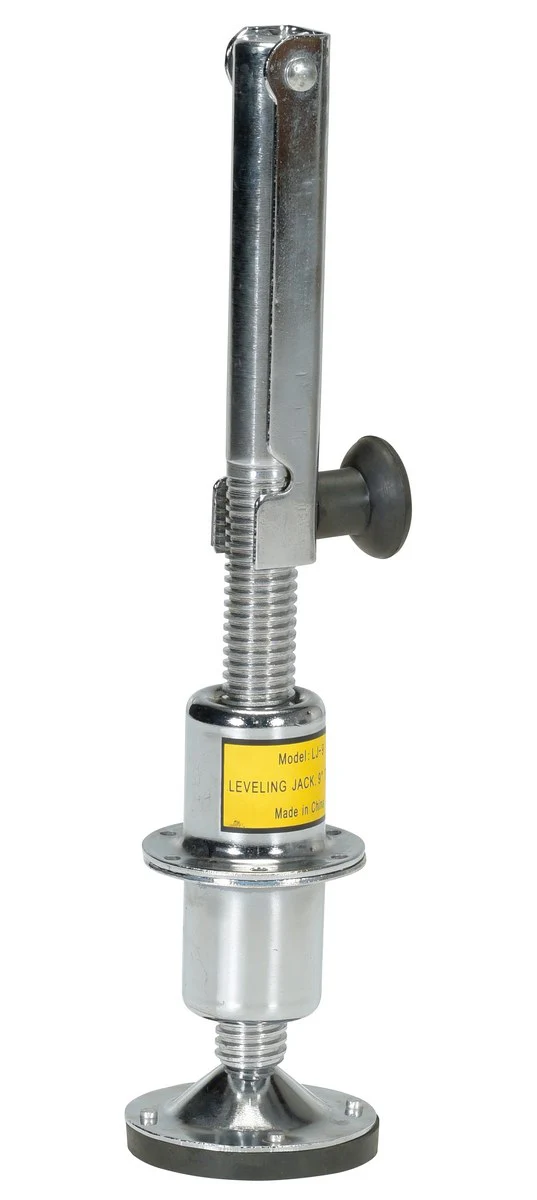

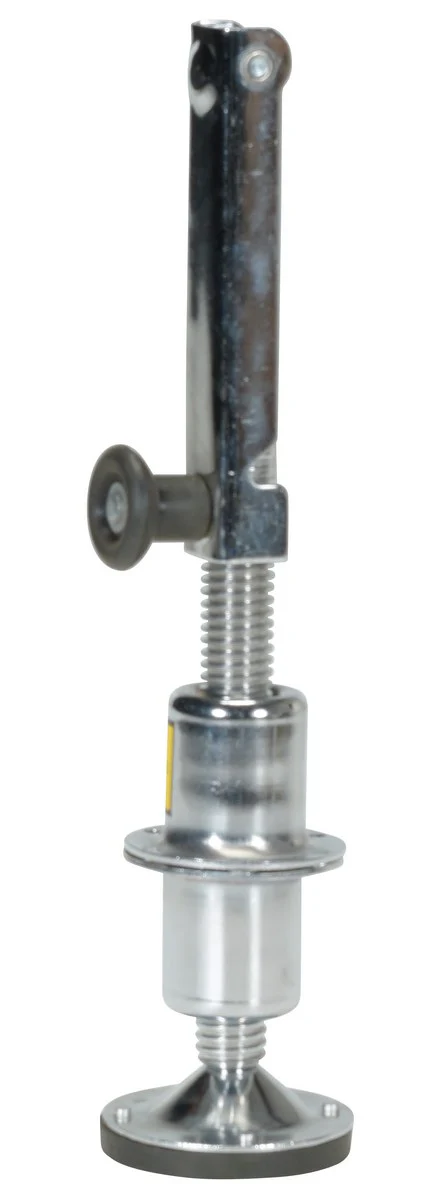

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.
Testing Certificates
LJ-9
More Images
Vestil Manufacturing Corp Leveling Jacks
Vestil Manufacturing Corp Leveling Jacks
Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.
Testing Certificates
LJ-9
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Vestil Manufacturing Corp Leveling Jacks
Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diameter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's divided housing. Flanges are 3-5/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" diameter hole pattern. Jacks are made of steel with a polished chrome finish and have an 8-1/4" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diameter is 1-1/4". Lift rate is 1/4" per crank revolution.
Testing Certificates
LJ-9
