Vestil Manufacturing Corp Coil Rams/Lifters
Vestil Manufacturing Corp Coil Rams/Lifters
The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both carriage mount and fork mount. To accommodate multiple core sizes and capacities, units can be ordered with either a 4-1/2" or 5-5/8" diameter rams. Sturdy steel construction and painted blue. Fork mounted units feature 7-1/2" wide x 2-1/2" tall (usable) fork pockets on 24" centers while the carriage mounted units are secured to the fork truck carriage with a spring loaded lock pin.
- Unique design easily maneuvers many types of coiled material
- Painted blue coat provides a long lasting tough finish
- Safety device secures unit to fork truck
- Sturdy steel construction provides long lasting rugged use

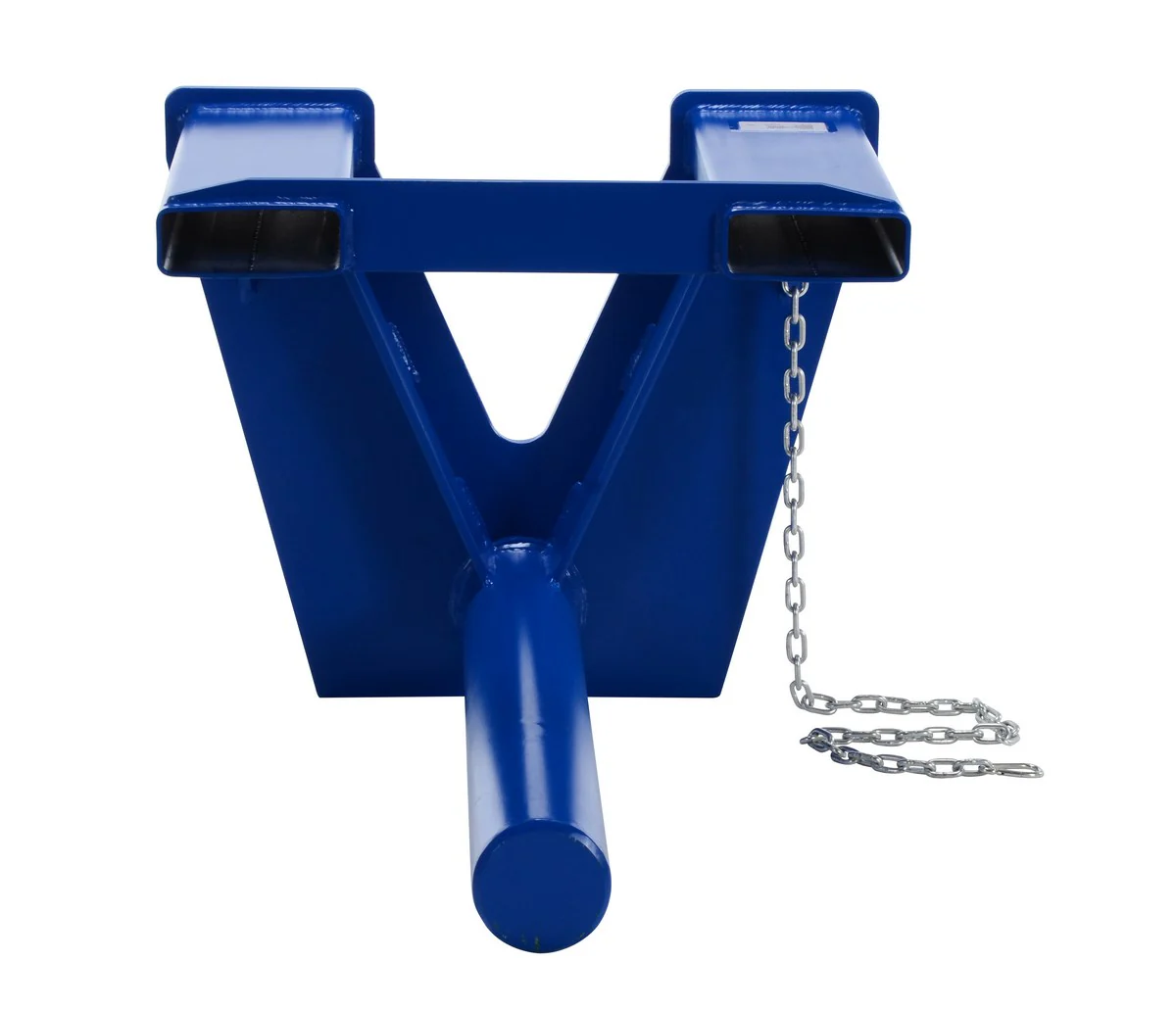

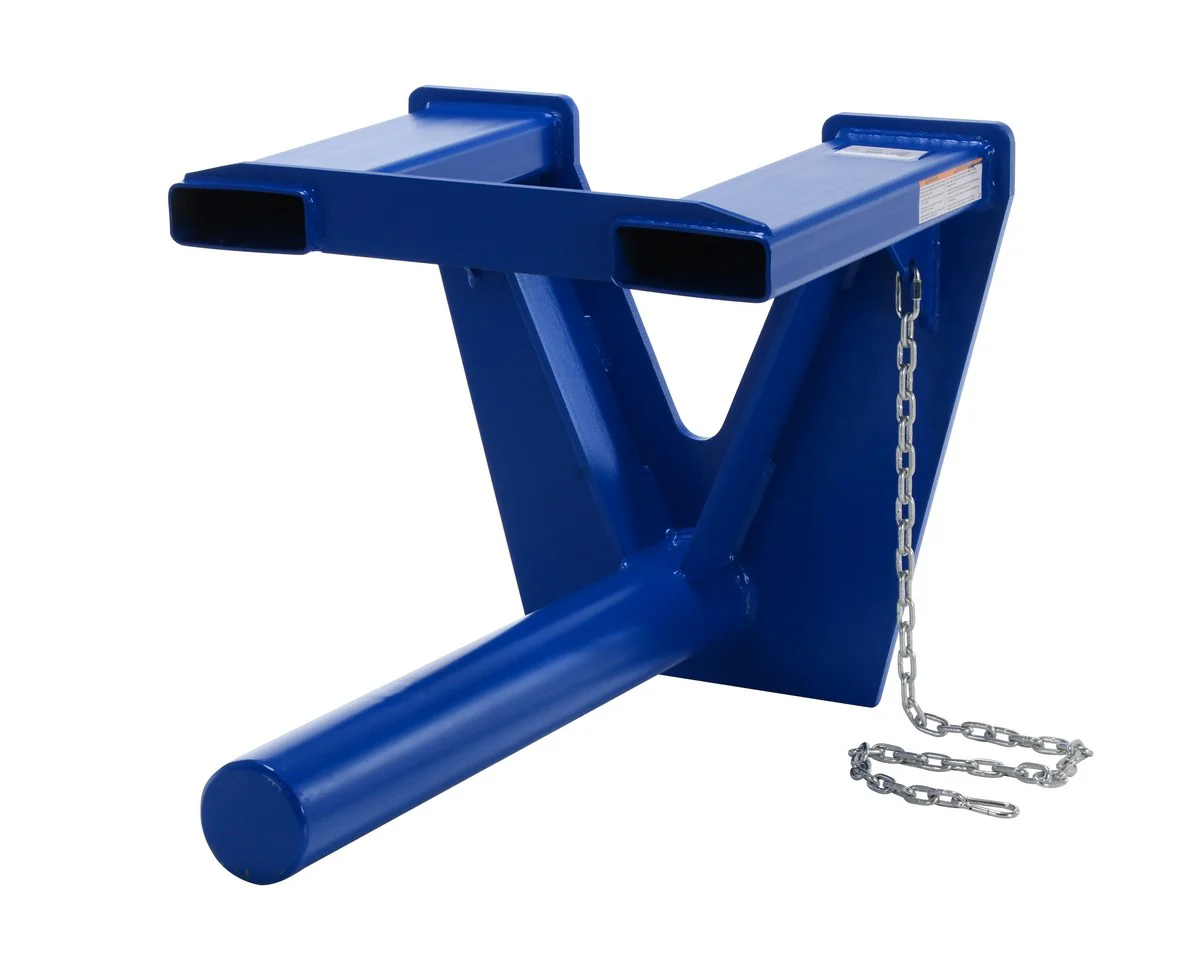

Fork Mounted (CCF)
**NOTE**
Never exceed load center rating per fork truck manuafacturer's guidlines. Do not use this fork truck attachment if load will exceed fork truck manuafacturer's Load Center Rating. See Engineering Drawing below to see each Model's Load Center Rating.
Carriage Mounted (CCM)
**NOTE**
Due to variations in Fork Truck carriages, the customer should verify that their carriage will conform to the dimensions shown in the Engineering Drawing for each model and Diagram to the right. Customer should verify dimensions B, T2, T3 & H4 to be able to quote a special backplate to fit.
Manuals
CCFOwners Manual
CCMOwners Manual
Testing Certificates
CCF-36-5
More Images
