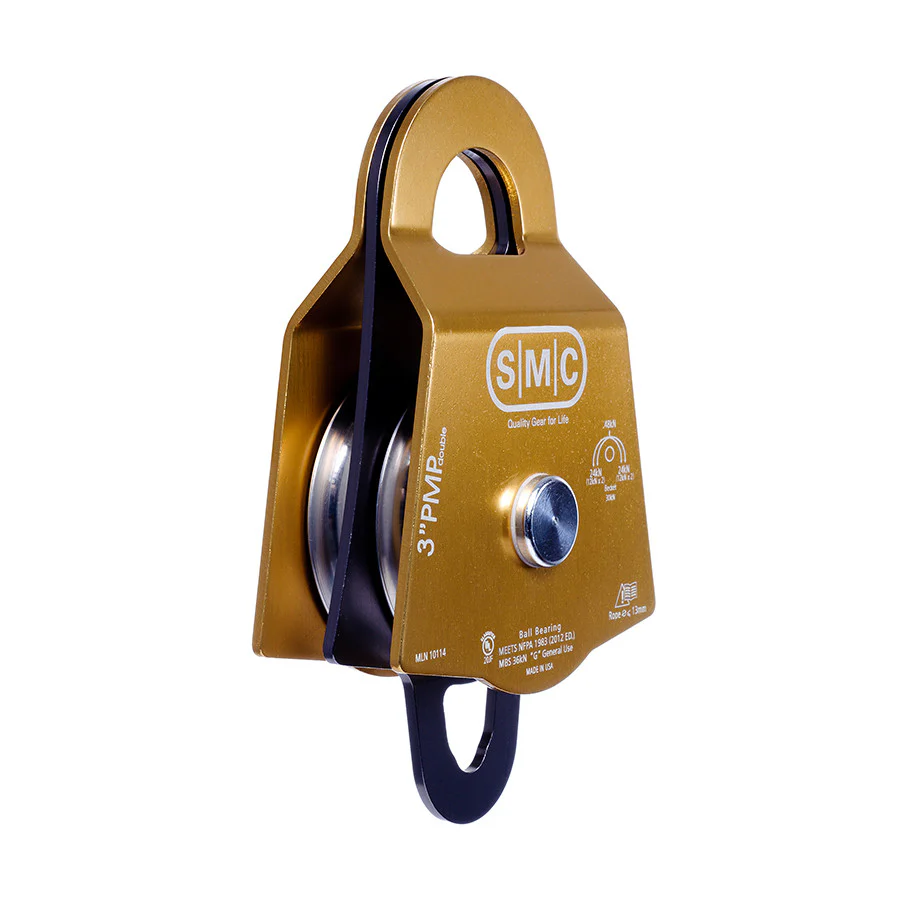

PMI SMC 3” Double Prusik Minding Pulley – NFPA
- DESCRIPTION
- SPECIFICATIONS
- FEATURES
The unique shape of the SMC 3” Double Prusik Minding Pulley’s aluminum side plates allow for efficient operation of Prusik hitches as a belay or progress capture device. A 3” diameter sheave runs on a high efficiency ball bearing, while low profile fasteners help eliminate the chance of the pulley snagging. The SMC 3” Double PMP can accommodate up to 13mm rope.
- Sealed ball bearings
- Large top hole easily accepts 3 carabiners
- Designed for 11mm – 13mm rope
- Precision machined aluminum side plates and 3” sheaves
- Includes becket
- NFPA 1983 (2012), G
- Berry Compliant
- Made in the USA
- Color: Gold/Grey
- Type: Double Pulley
- MBS: 48 kN (10790 lbf)
- Weight: 1 lbs 4.8 oz (590 g)
- Length: 7.10" (18.0 cm)
- Width: 4.17" (10.6 cm)
- Height: 2.20" (5.6 cm)
- Becket Strength: 30 kN
- Axle: Ball Bearing
- Sheave: 2.97" Aluminum
- Tread: 2.46"
- Max Rope Size: 13 mm
- Material: Aluminum
