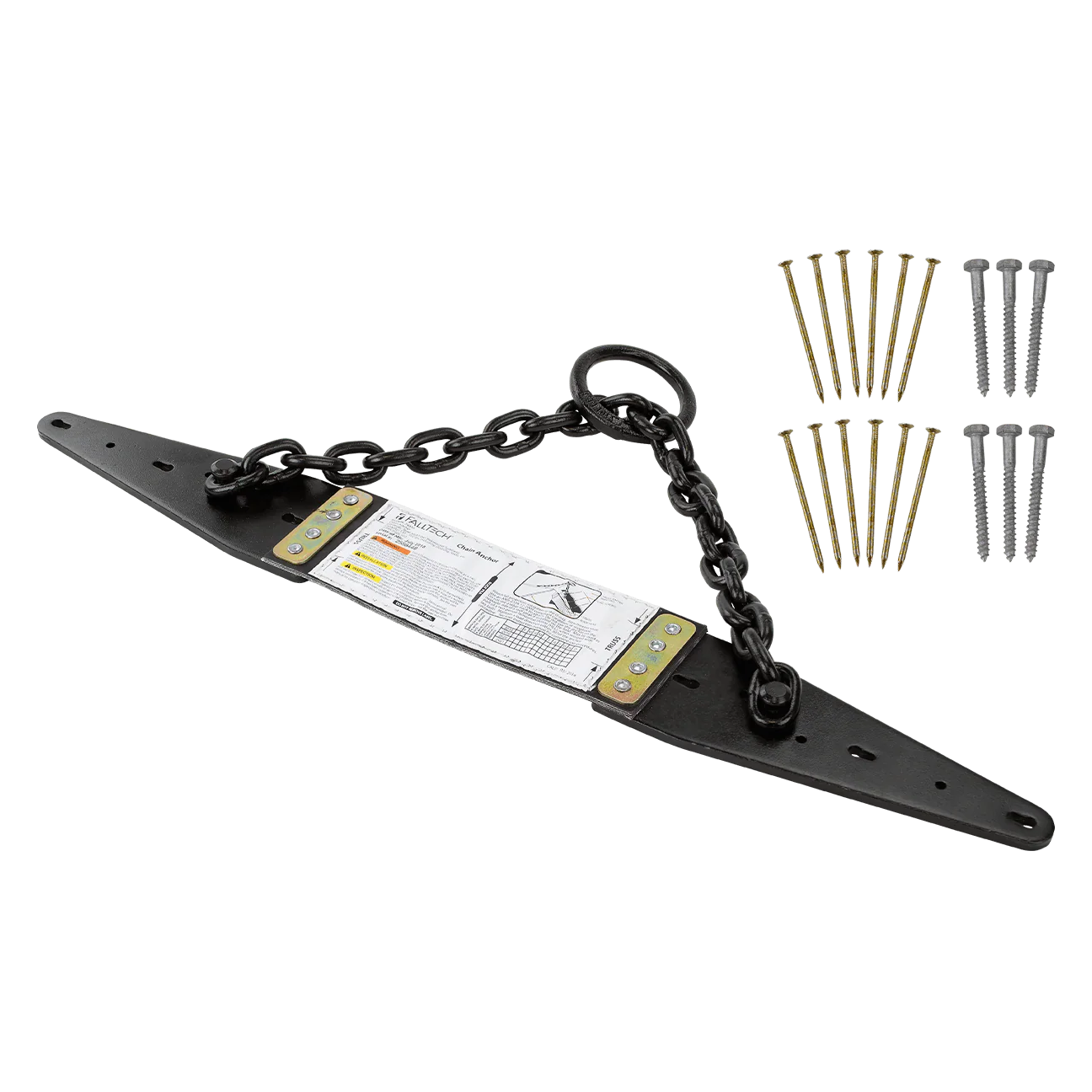

Reusable Heavy Duty Chain Anchor for Wood
HomeStore

Reusable Heavy Duty Chain Anchor for Wood

Reusable Heavy Duty Chain Anchor for Wood

Reusable Heavy Duty Chain Anchor for Wood

FEATURES

  • Features 9" x 3" anchoring plates, 2-1/4" connecting ring and 5/16" Grade 80 chain
  • Bendable plate joiner conforms to flat or sloped surfaces up to 12/12 pitch.
  • Includes 16D nails for roof ridge or field installation
  • Also includes 2-1/2" lag screws for use with HLLs
  • For temporary reusable installation on wood structures
  • Meets OSHA 1926.502 regulations

MATERIAL  SPECIFICATIONS

Plates:        Powder coated carbon steel
D-ring:       Coated alloy steel; 5,000 lb min. static strength
Chain:        5/16" welded link; 5,000 lb min. static strength

PERFORMANCE  SPECIFICATIONS

Static Strength:              5,000 lb min.
ANSI User Capacity:      130 to 310 lb max.
OSHA User Capacity:    130 to 425 lb max.

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

OSHA 1926.502 and 1910.66

$27.30

Original: $78.00

-65%
Reusable Heavy Duty Chain Anchor for Wood—

$78.00

$27.30

Reusable Heavy Duty Chain Anchor for Wood

Reusable Heavy Duty Chain Anchor for Wood

FEATURES

  • Features 9" x 3" anchoring plates, 2-1/4" connecting ring and 5/16" Grade 80 chain
  • Bendable plate joiner conforms to flat or sloped surfaces up to 12/12 pitch.
  • Includes 16D nails for roof ridge or field installation
  • Also includes 2-1/2" lag screws for use with HLLs
  • For temporary reusable installation on wood structures
  • Meets OSHA 1926.502 regulations

MATERIAL  SPECIFICATIONS

Plates:        Powder coated carbon steel
D-ring:       Coated alloy steel; 5,000 lb min. static strength
Chain:        5/16" welded link; 5,000 lb min. static strength

PERFORMANCE  SPECIFICATIONS

Static Strength:              5,000 lb min.
ANSI User Capacity:      130 to 310 lb max.
OSHA User Capacity:    130 to 425 lb max.

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

OSHA 1926.502 and 1910.66

Product Information

Shipping & Returns

Description

Reusable Heavy Duty Chain Anchor for Wood

FEATURES

  • Features 9" x 3" anchoring plates, 2-1/4" connecting ring and 5/16" Grade 80 chain
  • Bendable plate joiner conforms to flat or sloped surfaces up to 12/12 pitch.
  • Includes 16D nails for roof ridge or field installation
  • Also includes 2-1/2" lag screws for use with HLLs
  • For temporary reusable installation on wood structures
  • Meets OSHA 1926.502 regulations

MATERIAL  SPECIFICATIONS

Plates:        Powder coated carbon steel
D-ring:       Coated alloy steel; 5,000 lb min. static strength
Chain:        5/16" welded link; 5,000 lb min. static strength

PERFORMANCE  SPECIFICATIONS

Static Strength:              5,000 lb min.
ANSI User Capacity:      130 to 310 lb max.
OSHA User Capacity:    130 to 425 lb max.

Instruction Manual
Declaration of Conformity

COMPLIANT WITH:

OSHA 1926.502 and 1910.66
