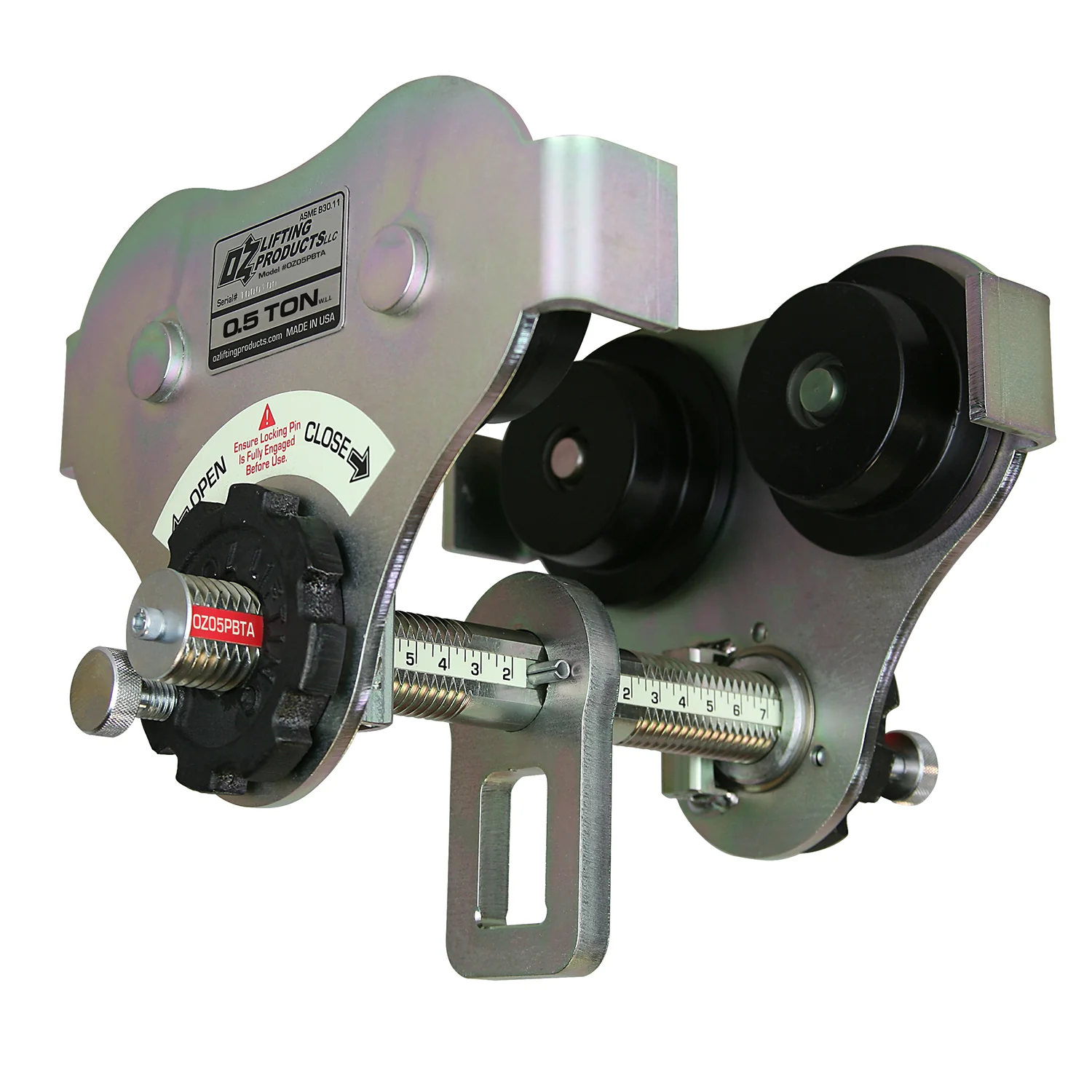

OZ Lifting USA Push Beam Trolley
OZ Lifting USA Push Beam Trolley
The Oz Lifting USA push beam trolley is a solid yet lightweight trolley that can easily attach to most I, S and W-beams. The trolley is available with weight capacities of 0.5 ton, 1 ton, 2 ton ad 3 ton and flange widths of 8", 12" and 16". The trolley is engineered for use with manual or powered hoists and has a zinc plated finish made in the USA.
Product Video
FEATURES
- Fastest adjusting trolley requiring no tools to install
- Lightweight robust construction
- ROHS compliant zinc plated finish
- Glow in the dark decals
- Fits to most I, S, and W-Beams
- Durable baked enamel provides protection
- Precision ball bearing trolley wheels
- Side plates protect trolley wheels
- Anti-drop plate
- Stainless steel ID tag
- Individual test certificate and serial number
Standards – ASME B30.11, ASME B30.16
(for use with manual or powered hoists)
Specifications
| OZ05PBTA | OZ1PBTA | OZ2PBTA | OZ3PBTA | ||
| Safe working load (lbs) | 1,000 | 2,000 | 4,000 | 6,000 | |
| Adjustable flange width (in) | 2.52-8.00 | 2.75-8.00 | 3.75-8.00 | 3.75-8.00 | |
| Max Flange Thickness (in) | 1.12 | 1 | 1.5 | 1.75 | |
| Product dimensions | A | 12.25 | 11 | 14 | 14 |
| B | 8.3 | 10.2 | 12 | 15.4 | |
| C | 8.5 | 9.8 | 11.9 | 14 | |
| D | 5 | 5.5 | 8.5 | 9.87 | |
| Minimum radius curve (ft) | 2.75 | 3.35 | 4.5 | 5 | |
| Net weight (lbs) | 16 | 26 | 45 | 80 |
WHEEL AND BAIL DIMENSIONS
| OZ05PBTA | OZ1PBTA | OZ2PBTA | OZ3PBTA | |
| E (in) | 3.25 | 4.00 | 4.5 | 5.75 |
| F (in) | 2.38 | 3.00 | 3.25 | 4.38 |
| G (in) | 4.38 | 5.00 | 6.25 | 6.88 |
| H (in) | 1.50 | 1.88 | 2.25 | 2.5 |
| I (in) | 0.63 | 0.63 | 0.88 | 1.0 |
| J (in) | 1.00 | 1.25 | 1.38 | 1.5 |
| K (in) | 2.25 | 2.50 | 3.13 | 3.5 |
| L (in) | 0.38 | 0.50 | 0.50 | 0.63 |
