OZ Lifting Push Beam Trolley

OZ Lifting Push Beam Trolley

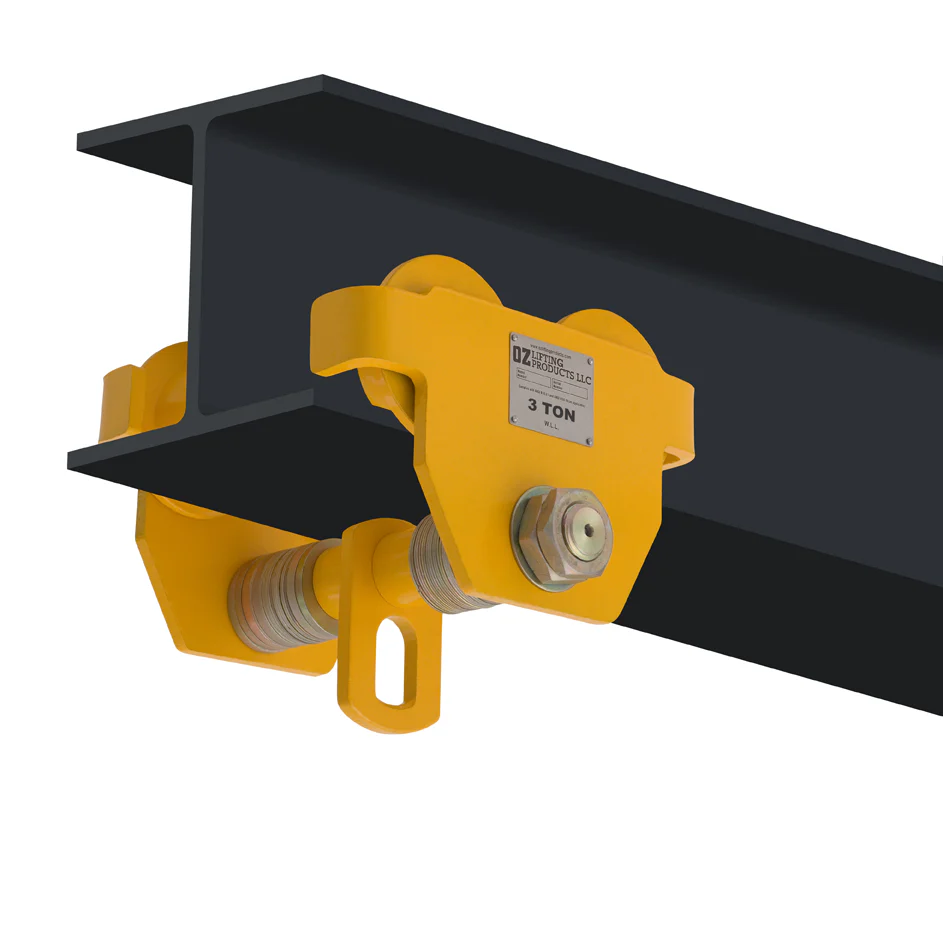

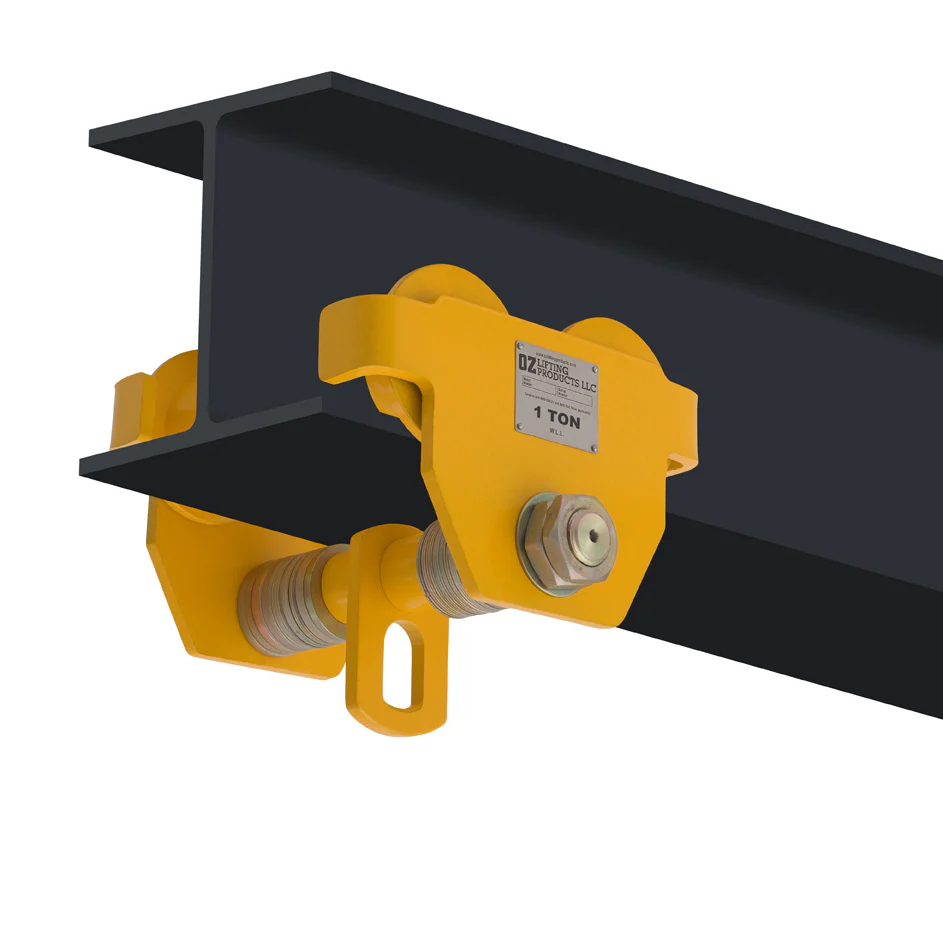

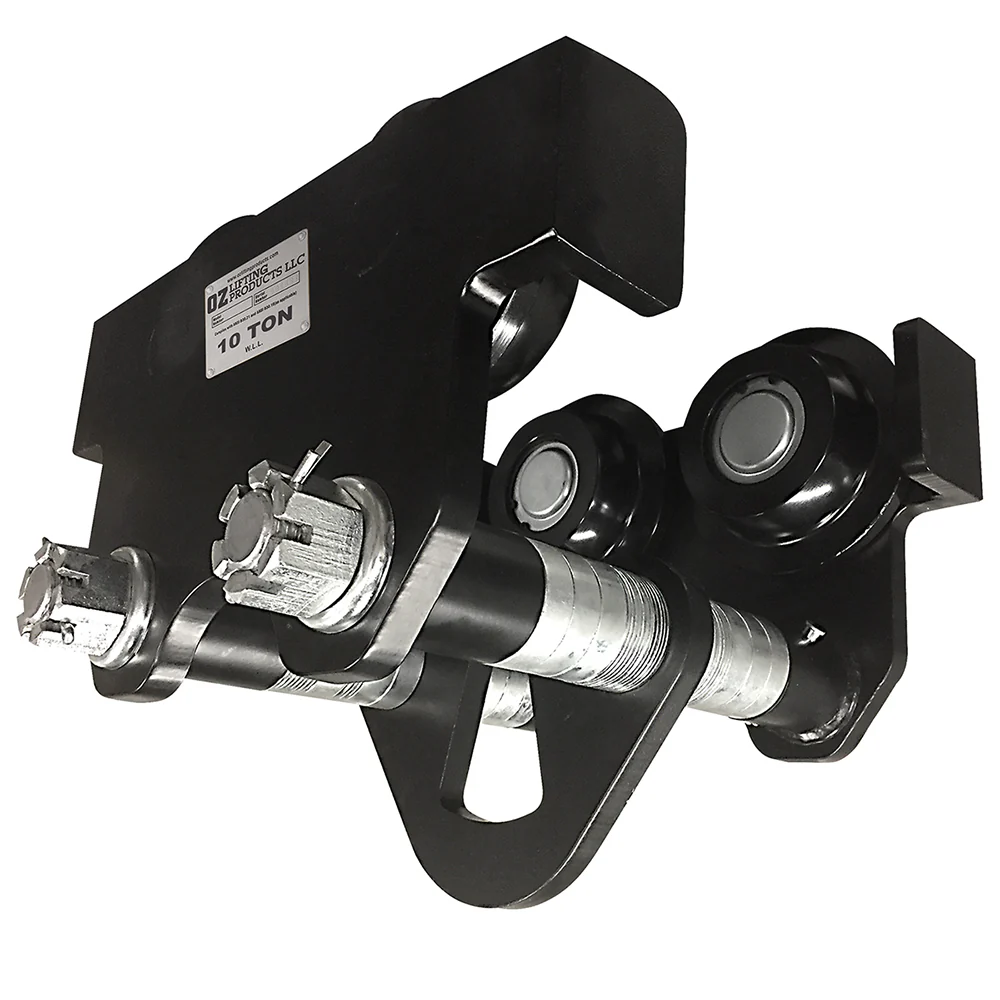

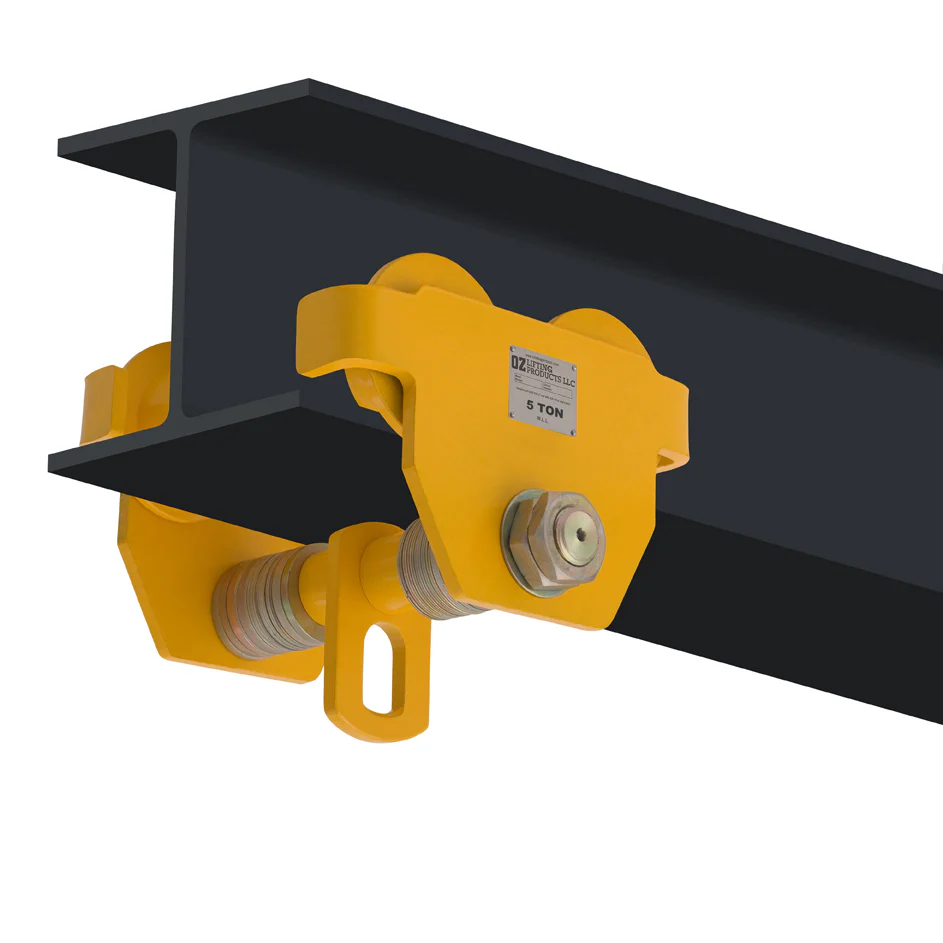

 The Oz Lifting beam trolley can quickly and securely fasten onto most I-beams to support weight ranging from 0.5 ton to 10 tons. The robust trolley is fully-welded with an all-steel construction making it highly durable and dependable. The trolley has a lightweight construction and an anti-drop plate to for easy and protected operation and setup.

Features

• Lightweight robust construction
• Fits to most I, S, and W-Beams
• Durable baked enamel paint protection
• Precision ball bearing trolley wheels
• Anti-drop plate
• Stainless steel ID tag
• Individual test certificate and serial number

Standards – CE, ASME B30.11, ASME B30.16
(for use with manual or powered hoists)

		OZ05PBT	OZ1PBT	OZ2PBT	OZ3PBT	OZ5PBT	OZ10PBT
Safe Working Load (lbs)		1,000	2,000	4,000	6,000	10,000	20,000
Adjustable Flange Width (in)		2.52-8.00	2.52-8.00	3.46-12.00	4.00-12.00	4.49-12.00	4.95-12.00
Max Flange Thickness (in)		1.14	1.50	1.61	1.81	2.28	1.97
Product Dimensions (in)	A	12.25	12.75	17.50	17.31	18.87	17.56
	B	8.50	9.45	11.81	13.58	15.55	16.75
	C	7.67	8.41	11.26	13.23	15.47	16.00
	D	4.33	4.90	6.34	7.28	8.66	7.5
Minimum Radius Curve (ft)		2.95	3.28	3.60	4.26	4.59	5.57
Net weight (lbs)		20	23	37	78	114	198

*Scroll down to see wheel and bail dimensions. *Dimensions are for reference only and subject to change without notice.

	OZ05PBT	OZ1PBT	OZ2PBT	OZ3PBT	OZ5PBT	OZ10PBT
E (in)	2.83	3.50	4.00	5.79	6.30	7.45
F (in)	2.05	2.48	2.68	4.34	4.81	5.95
G (in)	4.05	4.21	5.31	7.09	8.67	11.23
H (in)	1.50	1.50	2.01	2.96	3.75	4.73
I (in)	0.75	0.75	0.87	1.03	1.38	1.78
J (in)	1.25	1.25	1.50	1.78	2.37	3.23
K (in)	2.25	2.25	2.76	3.94	4.73	5.91
L (in)	0.32	0.39	0.47	0.63	0.79	0.99
