OZ Lifting Industrial Lever Hoist

Oz Lifting Industrial Lever Hoist

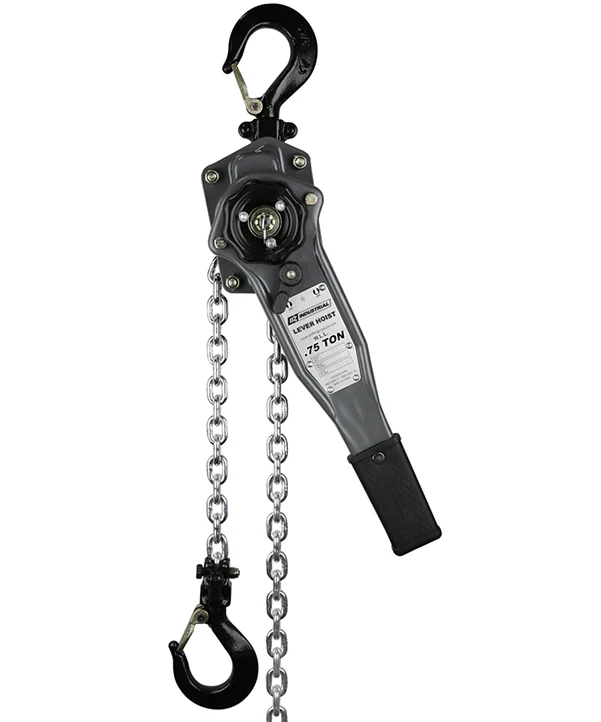

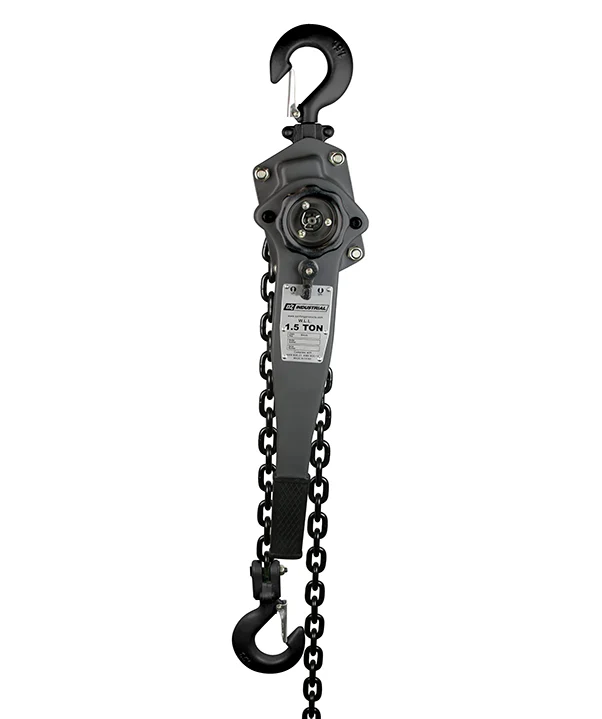

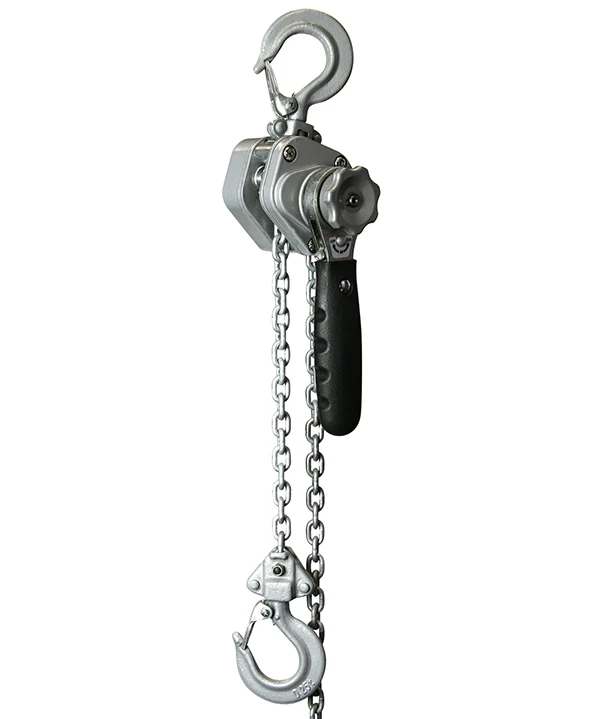

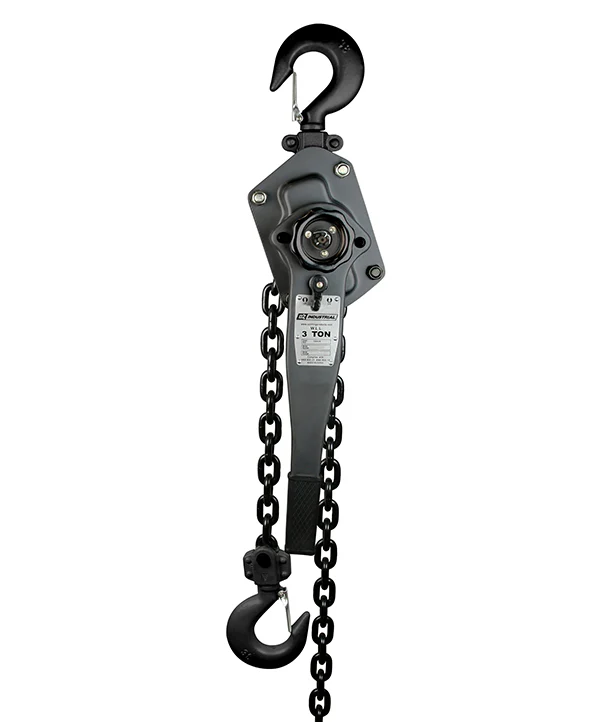

The Oz Lifting industrial lever hoist is an all-steel constructed, lever-operated hoist available in 0.25 ton (aluminum), 0.75 ton, 1.5 ton, 3 ton, 6 ton, and 9 ton capacities.

This come-along hoist uses a 100% load-tested Grade 80 alloy chain and features fully enclosed gearing to protect against contaminants and debris. It includes load sheave bearings, a durable powder-coated finish, and a steel handle with rubber grip for improved control. Forged alloy steel hooks with heavy-duty safety latches ensure secure attachment.

Features

• All-steel construction
• 100% load-tested Grade 80 alloy chain
• Aluminum construction (¼ ton model)
• Fully enclosed gearing
• Long-lasting powder coat finish
• Load sheave bearings
• Steel handle with rubber grip
• Forged alloy steel hooks
• Minimal lifting effort required
• Heavy-duty latches
• Weston-style brake system with twin pawl design
• Carrying bag included (¼ ton model)

Standards: CE, ASME B30.21, AS1418.2

Specifications

Model	OZIND025-LH	OZIND075-LH	OZIND150-LH	OZIND300-LH
Capacity (tons)	0.25	0.75	1.5	3
Effort to Lift SWL (lbs)	44	40	66	88
Falls of Chain	1	1	1	1
Load Chain Diameter (mm)	4×12	6×18	8×24	10×30
Dimension A (in)	9.45	13.38	16.14	20.07
Dimension B (in)	3.62	5.31	5.91	8.27
Dimension C (in)	3.86	6.02	6.89	7.83
Dimension D (in)	6.3	12.2	16.34	16.34
Dimension E (in)	2.36	3.62	3.98	4.45
Hook Opening (Upper & Lower) (in)	0.83	1.1	1.26	1.5
Net Weight (lbs)	4	12	20	36
