MTN Half Coupler
MTN Half Coupler

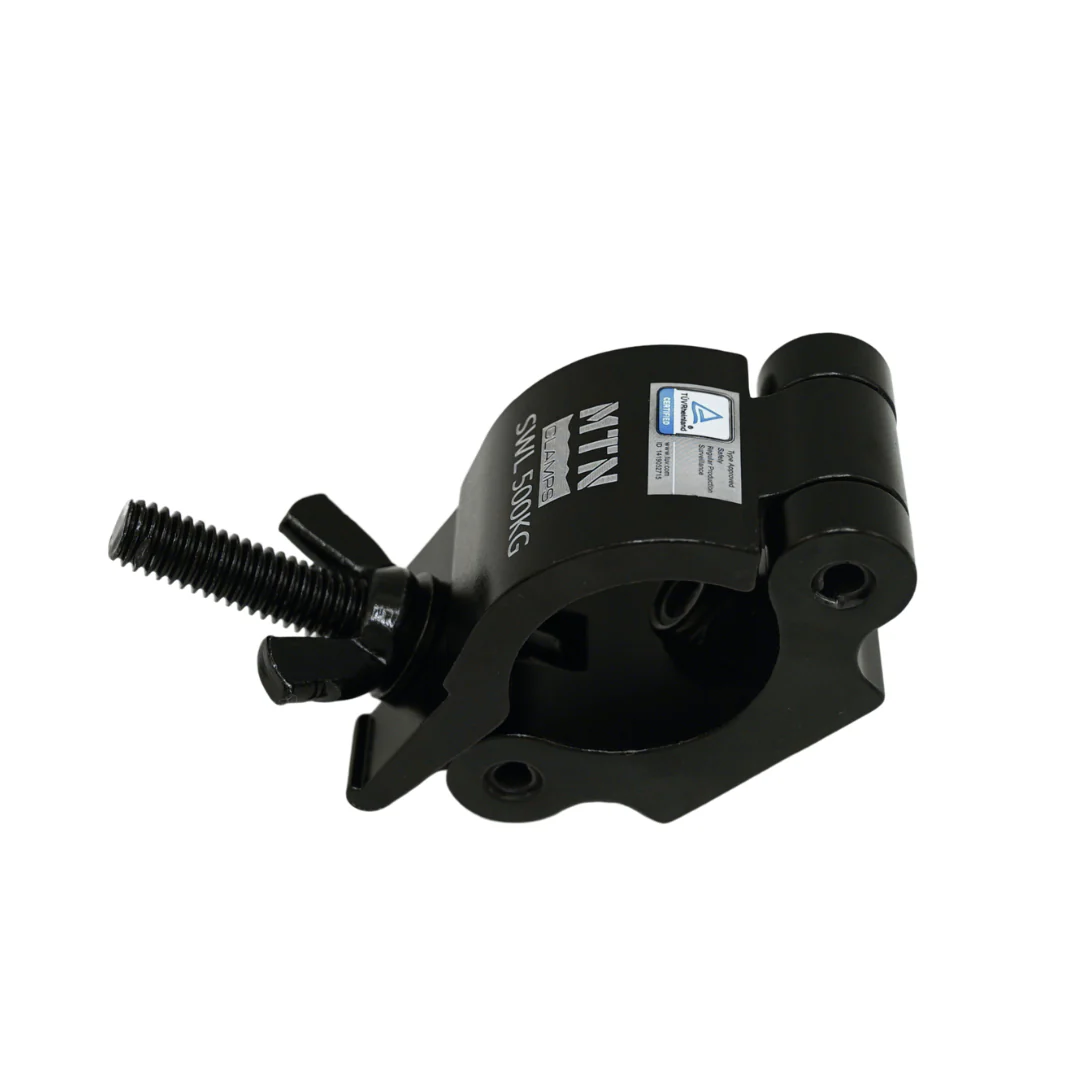

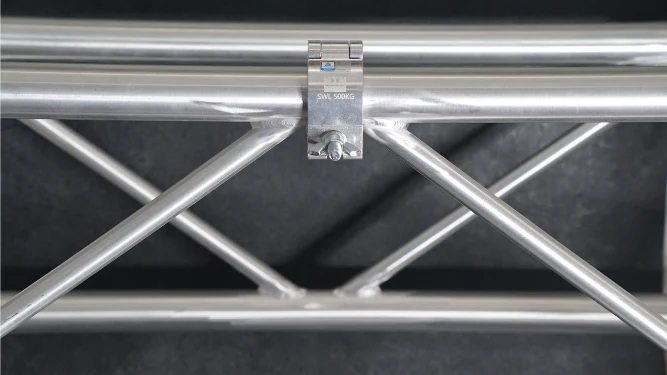

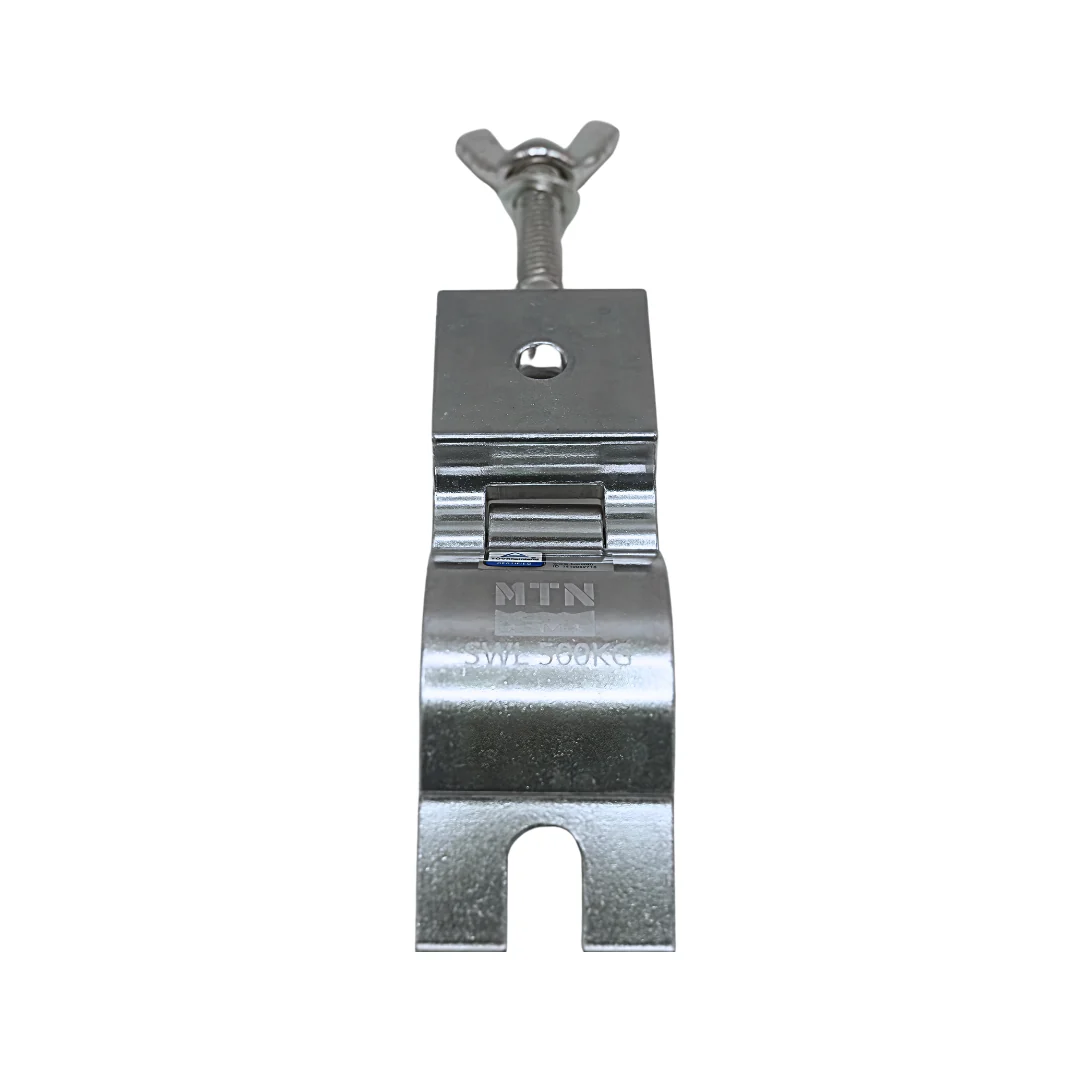

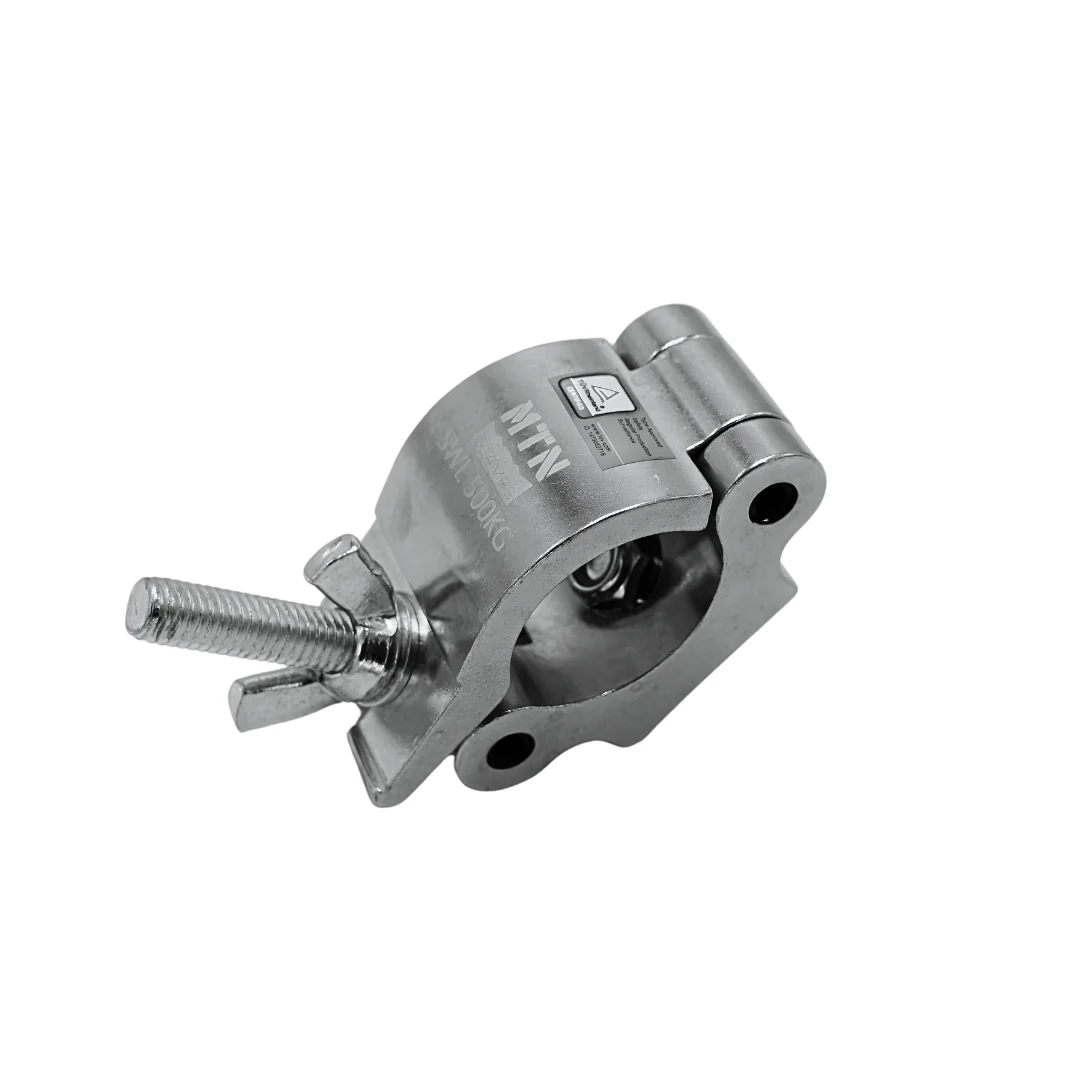

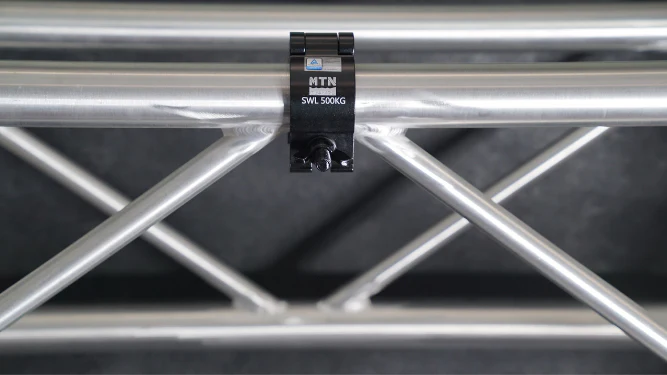

The MTN Half Coupler features a round hole with CSK bolt and lock-nut for secure fastening. TUV certified, it is available in silver polished or black anodized finishes offering durability and versatility.
Downloads:
Key Features:
- Equipped with a round hole, CSK bolt, and lock-nut for secure fastening
- Constructed from high-strength Aluminum Alloy (Al 6061-T6)
- Compatible with tube outer diameters from 1.5″ to 2.05″
- Available in both silver polished and black anodized finishes
- TUV Certified for trusted performance and safety
Specifications:
- Width: 1.97″
- Material: Aluminum Alloy (Al 6061-T6)
- Fit Tube OD: 1.5″ – 2.05″
- Safe Working Load: 1,102 lbs
- Surface Treatment: Silver Polishing or Black Anodized
References:
- Unit Weight: 2.03 lbs
- Certification: TUV Certified
- Technical Datasheet: Included in Downloads
