Lineman’s Strap Hoists

Little Mule offers multiple options for every application a linesman needs. These lightweight strap hoists are the “Linesman’s Choice” in the utility industry. It is available in four hooks as shown in the diagram. For the details of each model, please refer to the specification table.

Features:

• Handle Designed for Overload Protection — Handle bends to warn of the hazardous condition and prevents dangerous overload.
• Hooks with Latches — 360° swiveling hooks equipped with latches for positive load engagement.
• Positive Load Holding in All Environments — Double, interlocking pawl mechanism assures one pawl is engaged at all times.
• Lightweight and Rugged — Special cast aluminum and zinc alloy housings.
• Corrosion Resistant — All stainless steel springs and shafts.
• Reduced Wear — All rotating shafts are mounted on bronze bushings.
• Self-Storing Web Drum — Provides compact operation.
• Easy Load Positioning — Utilizes a double pawl system with multiple pawl stops for precise load adjustment.
• Fast Strapping Take-Up — Winding wheel provided for quick take-up or positioning of the strap.
• Open Construction — Allows for easy cleaning and inspection.
• Made in the USA

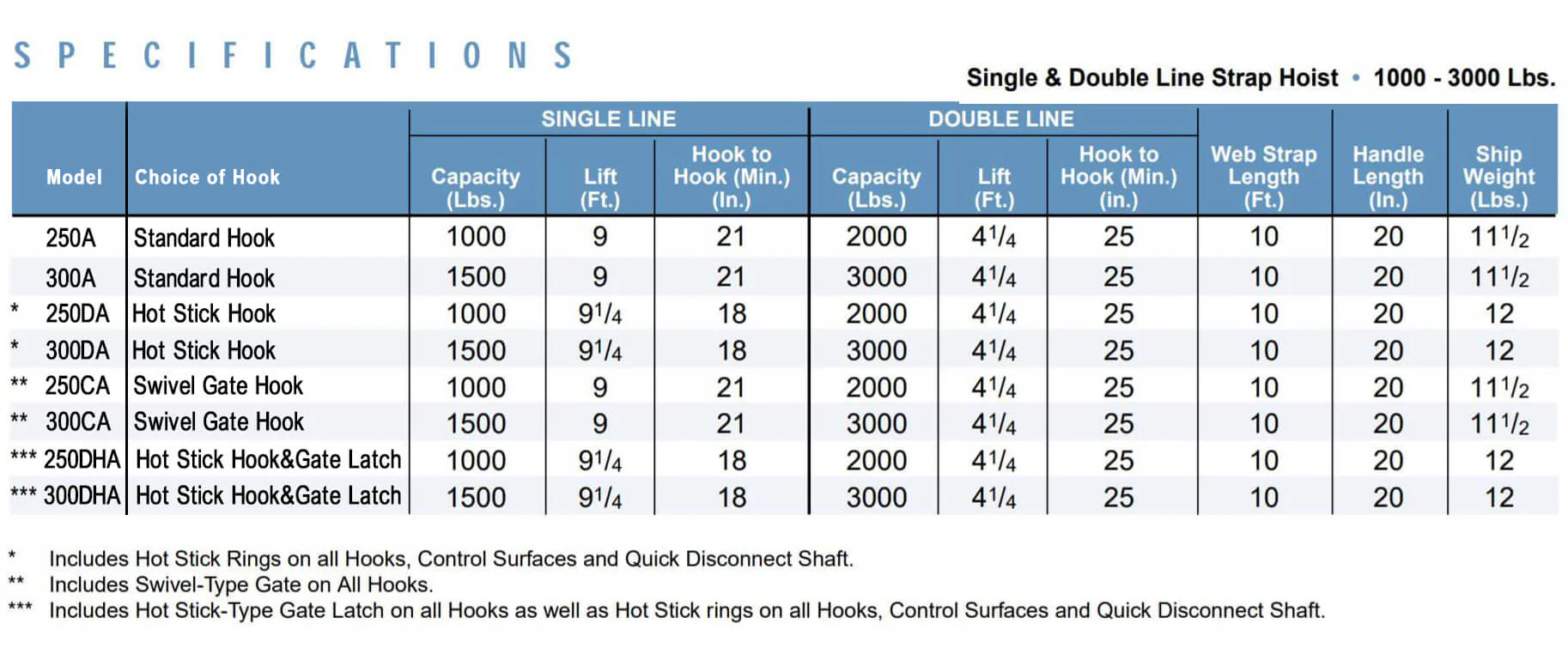

Specifications:

• Capacities —
  Single Line: 1000 and 1500 lbs
  Double Line: 2000 and 3000 lbs
• Lifts —
  Single Line: 9Ft - 9.25Ft
  Double Line: 4.25Ft
• Ship Weight —  11.5lbs - 12lbs
• Web Strap Length — 10Ft
• Handle Length — 20 inch
• Meets or Exceeds — Minimum 4:1 design factor and all requirements of ASME/ANSI Standard B-30.21. All units tested at 125% of rated load.

Options:

• 4 Hooks (See the diagram):
  -Standard(A)
  -Hot Stick Hook (DA)
  -Swivel Gate Hook (CA)
  -Hot Stick Hook & Gate Latch (DHA)
