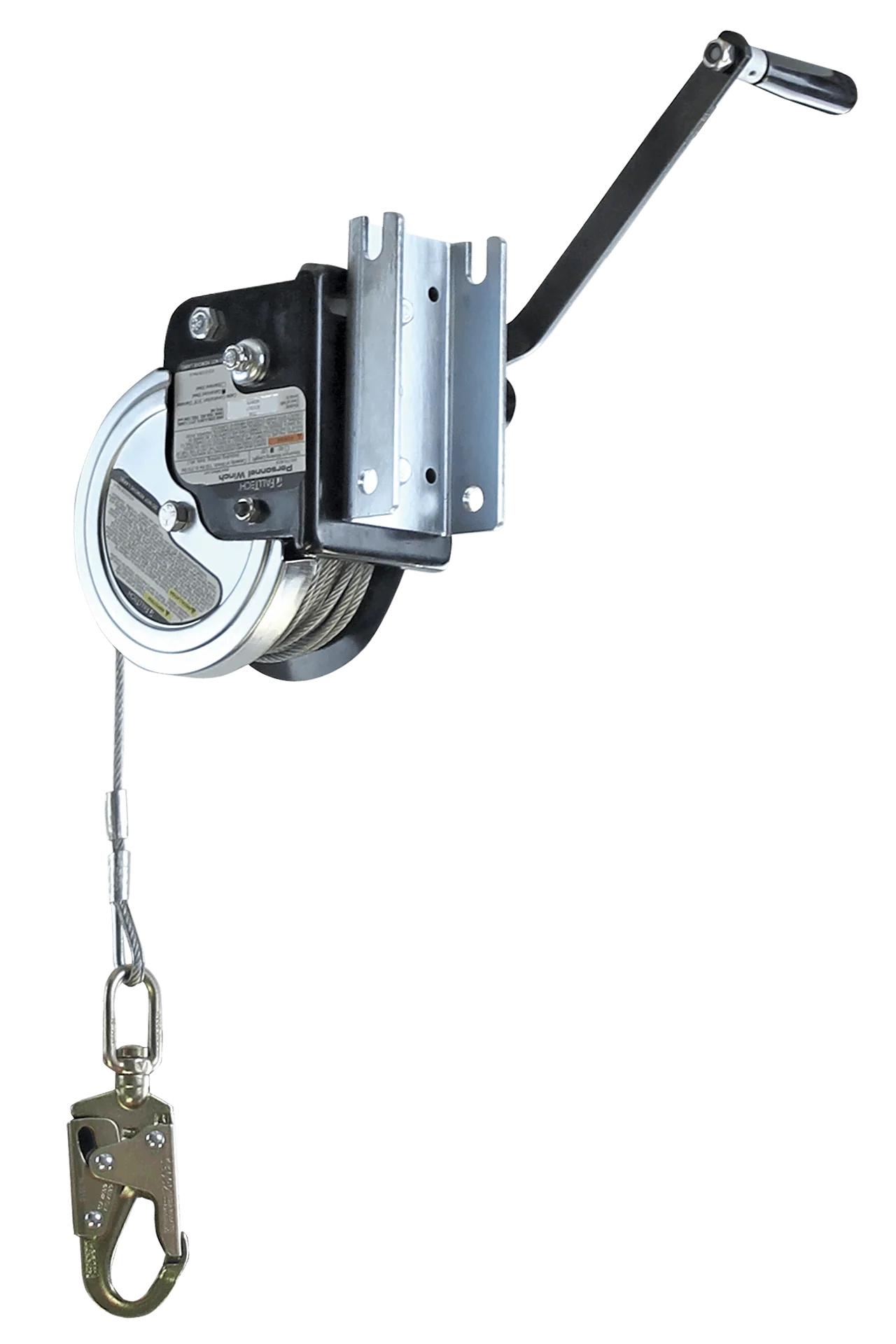

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable
HomeStore

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FEATURES

  • Single user mechanical Winch for entering and exiting confined spaces
  • 3/16" stainless steel cable lifeline with alloy steel swivel snap hook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2009
Cable:                                                  3/16" stainless steel; 3,400 lb min. static strength
Lifeline Connector:                           Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears:                     Plated alloy steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                      3,100 lb min.
Handle Operation Force:                      30 lb max.
ANSI User Capacity:                             130 to 310 lb max.
OSHA User Capacity:                            130 to 310 lb max.

SIZES & PART NUMBERS

  • 7297S - 60'
  • 7298S - 120'
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure

COMPLIANT  WITH:

ANSI Z359.4-2013 and Z117.1-2009
OSHA 1926.502, 126.1200 and 1910.146
Select Size
From $339.50

Original: $970.00

-65%
FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable—

$970.00

$339.50

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FEATURES

  • Single user mechanical Winch for entering and exiting confined spaces
  • 3/16" stainless steel cable lifeline with alloy steel swivel snap hook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2009
Cable:                                                  3/16" stainless steel; 3,400 lb min. static strength
Lifeline Connector:                           Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears:                     Plated alloy steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                      3,100 lb min.
Handle Operation Force:                      30 lb max.
ANSI User Capacity:                             130 to 310 lb max.
OSHA User Capacity:                            130 to 310 lb max.

SIZES & PART NUMBERS

  • 7297S - 60'
  • 7298S - 120'
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure

COMPLIANT  WITH:

ANSI Z359.4-2013 and Z117.1-2009
OSHA 1926.502, 126.1200 and 1910.146

Product Information

Shipping & Returns

Description

FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable

FEATURES

  • Single user mechanical Winch for entering and exiting confined spaces
  • 3/16" stainless steel cable lifeline with alloy steel swivel snap hook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2009
Cable:                                                  3/16" stainless steel; 3,400 lb min. static strength
Lifeline Connector:                           Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum Gears:                     Plated alloy steel

PERFORMANCE  SPECIFICATIONS

Static Strength:                                      3,100 lb min.
Handle Operation Force:                      30 lb max.
ANSI User Capacity:                             130 to 310 lb max.
OSHA User Capacity:                            130 to 310 lb max.

SIZES & PART NUMBERS

  • 7297S - 60'
  • 7298S - 120'
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure

COMPLIANT  WITH:

ANSI Z359.4-2013 and Z117.1-2009
OSHA 1926.502, 126.1200 and 1910.146
