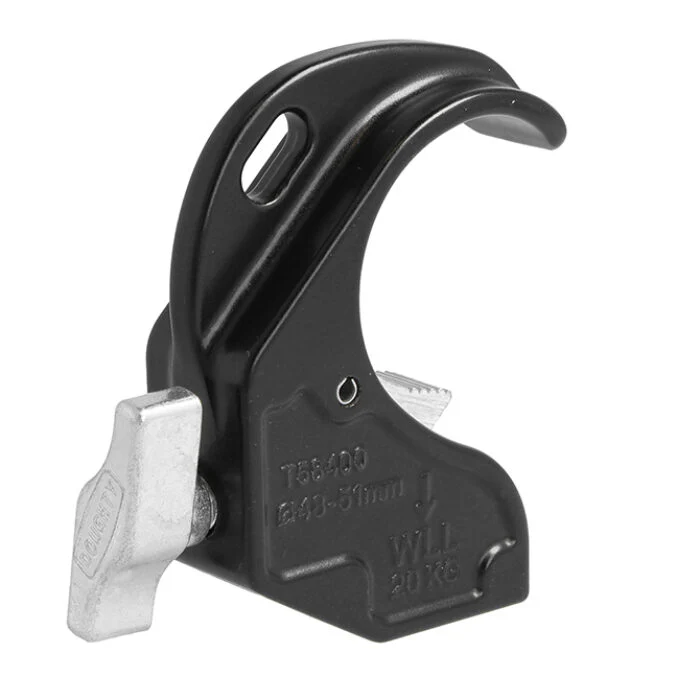

Doughty Twenty Clamp Black
Doughty Twenty Clamp Black
The Doughty Twenty Clamp is the latest addition to Doughty's range of aluminum clamps. Manufactured from pressure die-cast aluminum, this Doughty truss clamp has been designed to eliminate truss damage usually associated with steel hook clamps.
An innovative pressure die cast aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 20Kg and is 28mm (1.10″) wide. Slotted to hold captive an M10 nut or bolt head. Ideal for use with lightweight lanterns on trussing as it will not damage the cords. The perfect replacement for old style steel hook clamps. Available in powder coated black.
Downloads:
Key Features:
- Innovative pressure die cast aluminium construction
- Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)

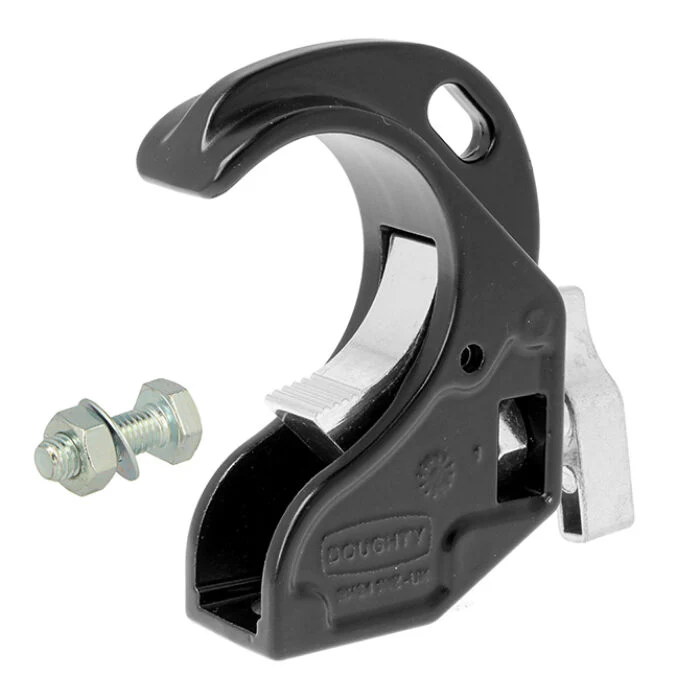

- Slotted design to hold captive an M10 nut or bolt head

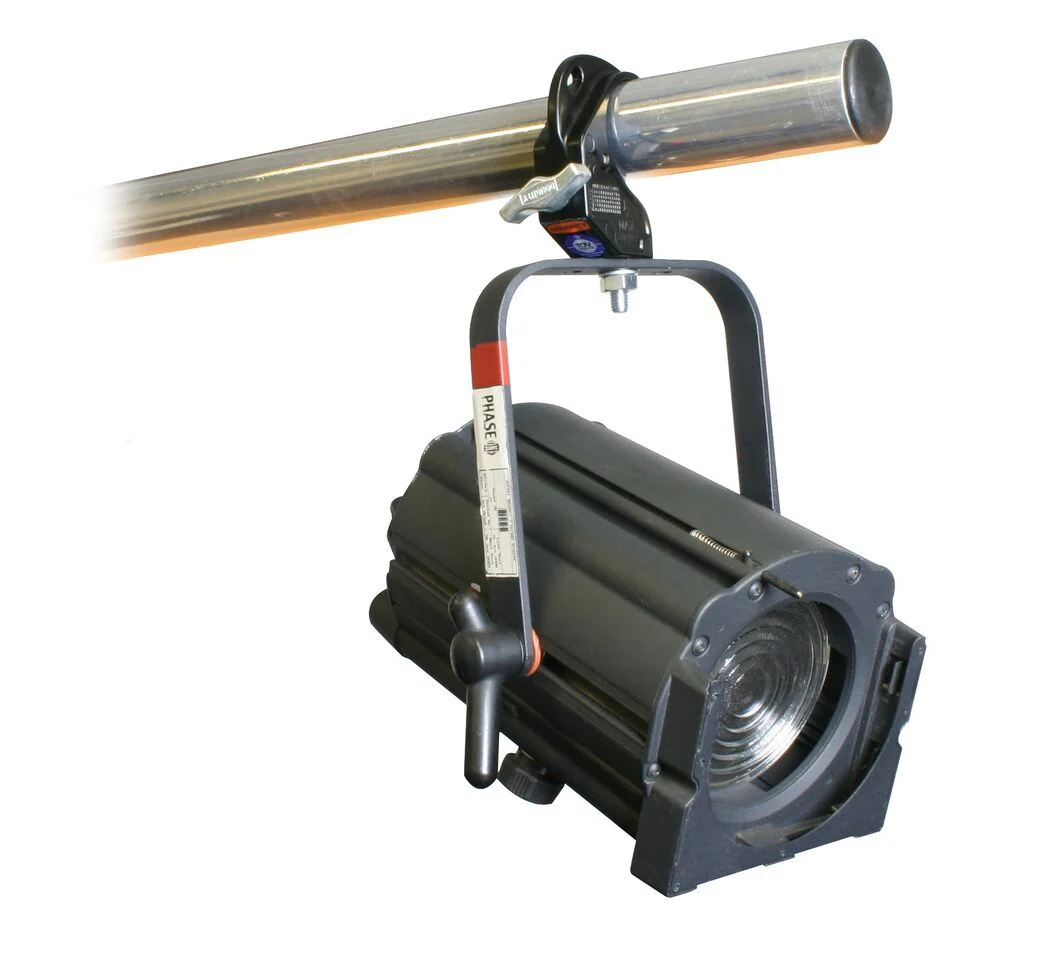

- Ideal for lightweight lanterns on trussing systems
- Finished in powder coated black for a professional look

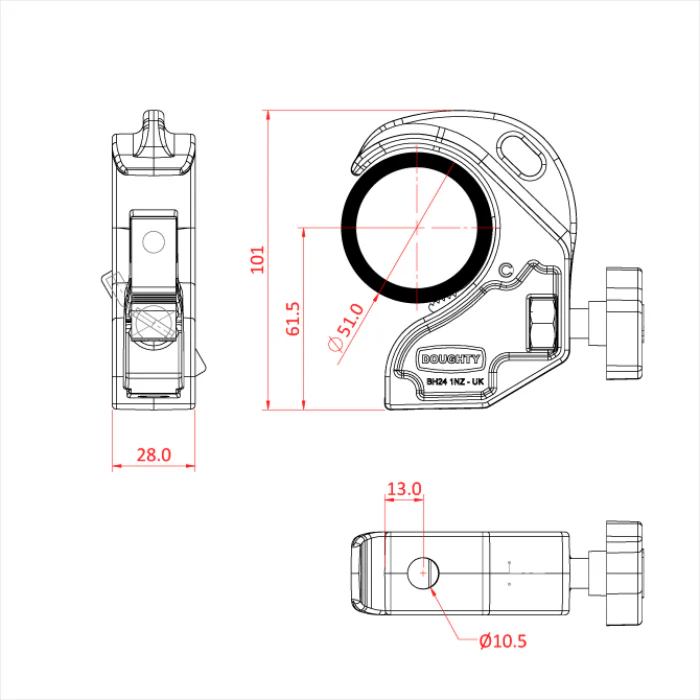

Specifications:
- WLL: 20Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Material: Pressure die cast aluminium
- Clamp body width: 28mm (1.10")
References:
- Replaces traditional steel hook clamps with a modern solution
- Prevents damage to truss cords during use
- Designed specifically for lightweight rigging applications
Original: $29.41
-65%$29.41
$10.29More Images
