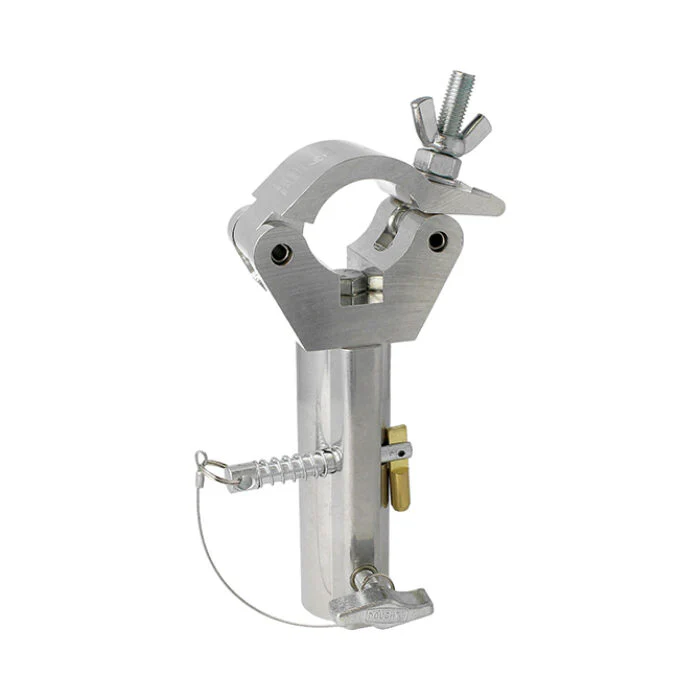

Doughty TV Quick Clamp
Doughty TV Quick Clamp
A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes and is 50mm (1.97″) wide, factory fitted with a 29mm (1.14″) Spigot receiver designed to accept a 28mm (1.10″) diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Factory fitted with 29mm (1.14″) Spigot receiver for 28mm (1.10″) diameter spigot
- Compatible with 48mm to 51mm diameter tubes
- 360 degree rotation with lynch pin secondary locking
- Available in polished silver or powder coated black

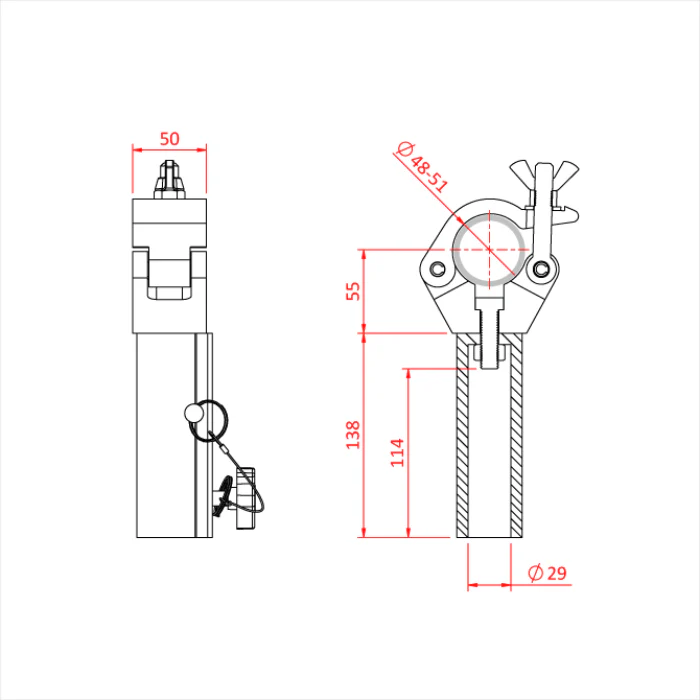

Specifications:
- WLL: 200Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Spigot Receiver: 29mm (1.14″), accepts 28mm (1.10″) diameter spigot
- Material: High tensile extruded aluminium
References:
- Designed for TV/Film industry applications
- Commonly used with Drop Arms and Pantographs
- Available finishes: Polished silver or powder coated black
Original: $144.21
-65%$144.21
$50.47More Images
