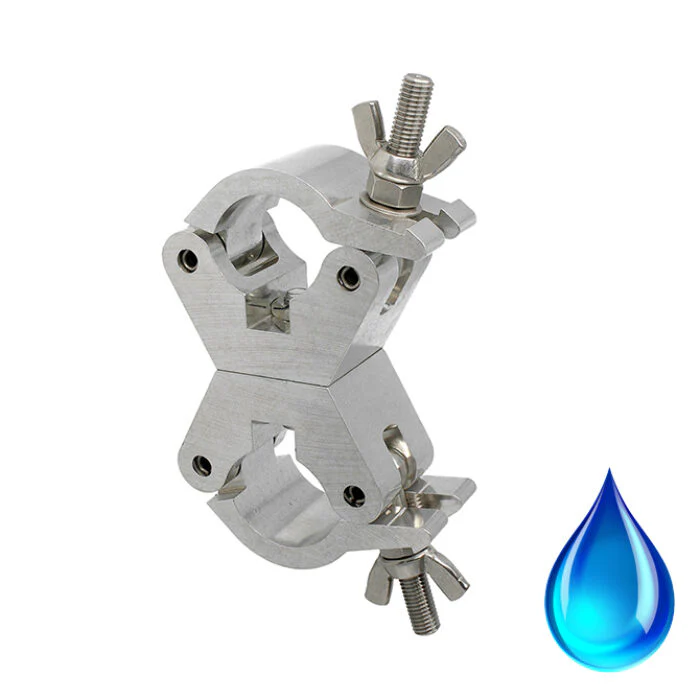

Doughty Swivel Coupler with Stainless Eye Bolt
Doughty Swivel Coupler with Stainless Eye Bolt
A high tensile extruded silver double swivel coupler suitable for 48mm – 51mm (1.89” – 2.01”) diameter tubes.
Allows two tubes 48mm – 51mm (1.89” – 2.01”) to attach to each other.
Supplied with stainless steel fastenings which make it ideal for use at outdoor events.
Downloads:
Key Features:
- High tensile extruded aluminum construction for enhanced durability
- Double swivel functionality for flexible tube positioning
- Compatible with 48mm – 51mm (1.89” – 2.01”) diameter tubes
- Stainless steel fastenings ideal for outdoor use
- Designed for secure and efficient tube-to-tube connection

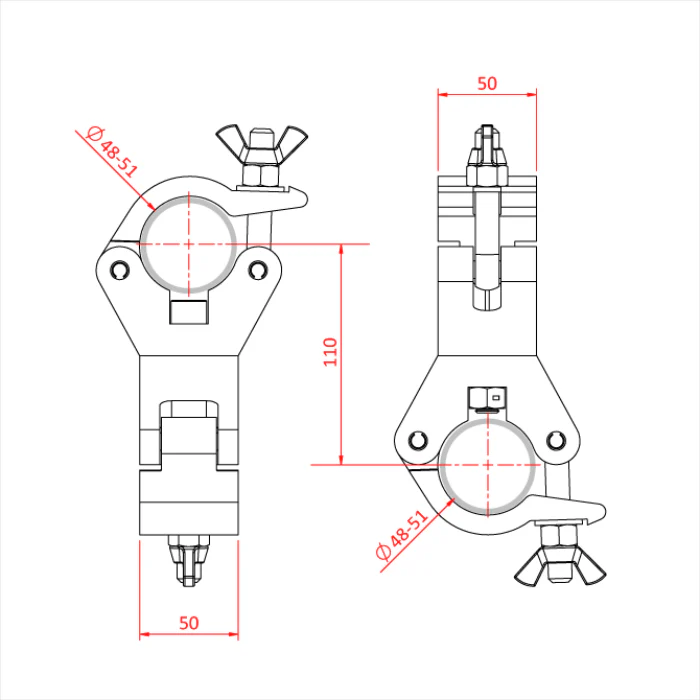

Specifications:
- WLL: 750kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Tube Centres: 110mm (4.33")
- Material: High tensile extruded aluminum with stainless steel fastenings
References:
Engineered for professionals in the rigging and staging industries, the Doughty Swivel Coupler with Stainless Eye Bolt delivers strength, precision, and adaptability for demanding environments.
