Doughty Side Entry Clamps
Doughty Side Entry Clamps
These Side Entry Doughty Clamps are ideally used in a place where height is at a premium and a clamp that fully encompasses the tube is required. This Clamp is suitable for cross bracing and suspensions where a firm fixing is required and a claw clamp is not appropriate.

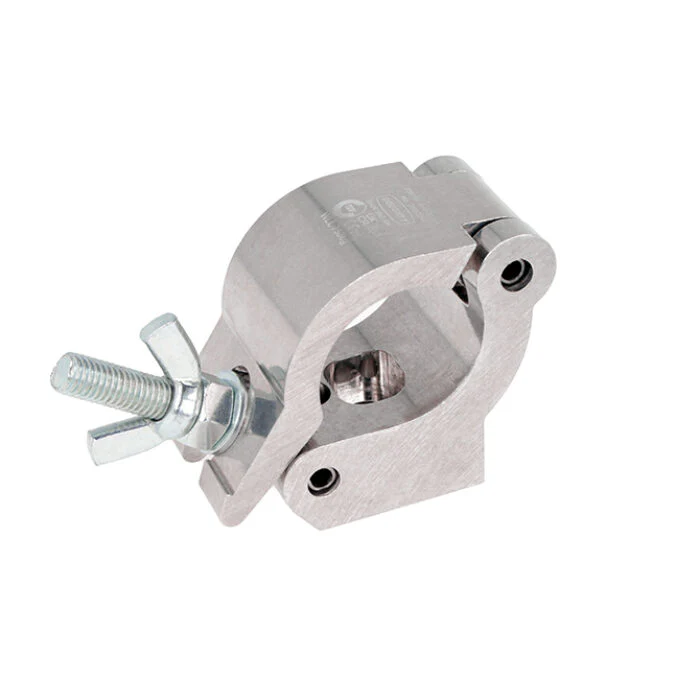

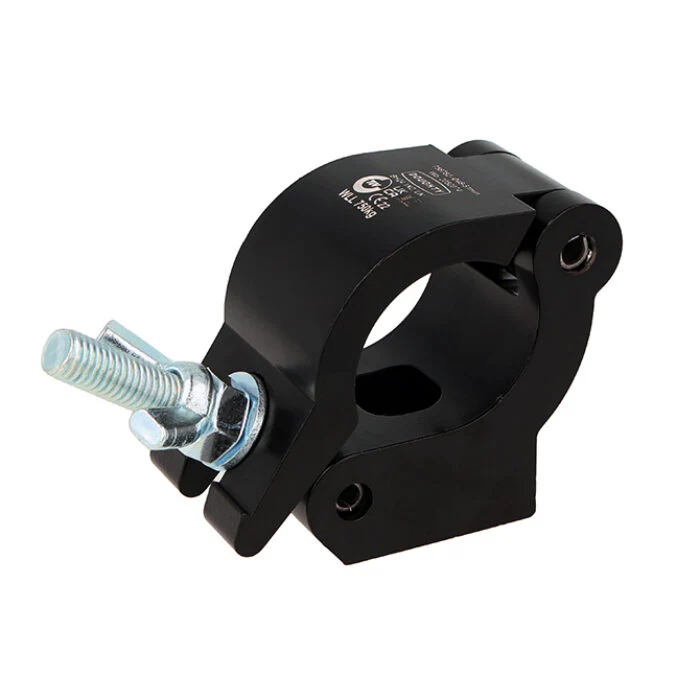

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. It has a WLL of 750Kg and is 50mm (1.97″) wide. Slotted to hold captive an M12 nut or bolt head, it is ideal for where height is at a premium and a clamp that fully encompasses the tube is required. Suitable for cross bracing and suspensions where a firm fixing is required and a claw clamp is not appropriate. Available in polished silver or powder coated black.
Downloads:
Key Features:
- High tensile extruded aluminium construction
- Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
- Slotted to hold captive an M12 nut or bolt head
- Ideal for applications where height is restricted
- Available in polished silver or powder coated black

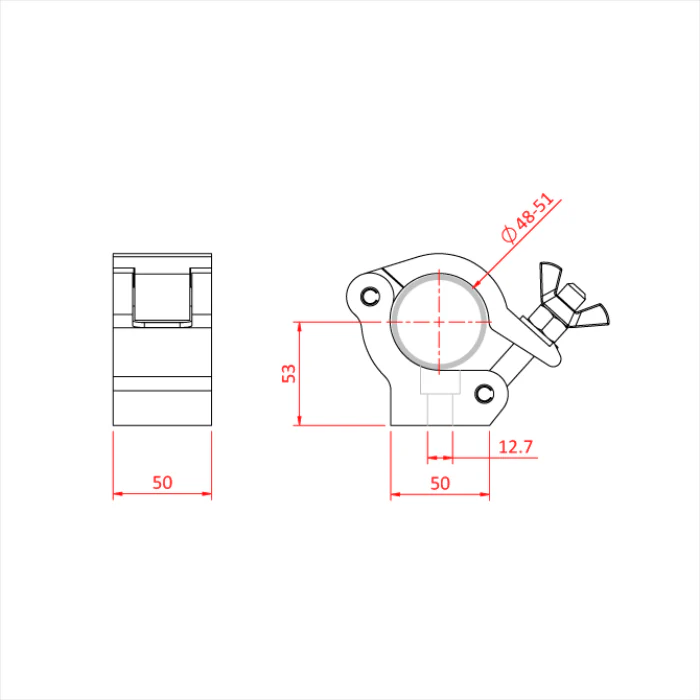

Specifications:
- WLL: 750kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
References:
- High tensile aluminium for durability and strength
- Cross bracing and suspension compatible
- Designed where a claw clamp is not appropriate
Original: $51.22
-65%$51.22
$17.93More Images
