Doughty Articulated Big Ben Clamp
HomeStore

Doughty Articulated Big Ben Clamp

Doughty Articulated Big Ben Clamp

Doughty Articulated Big Ben Clamp

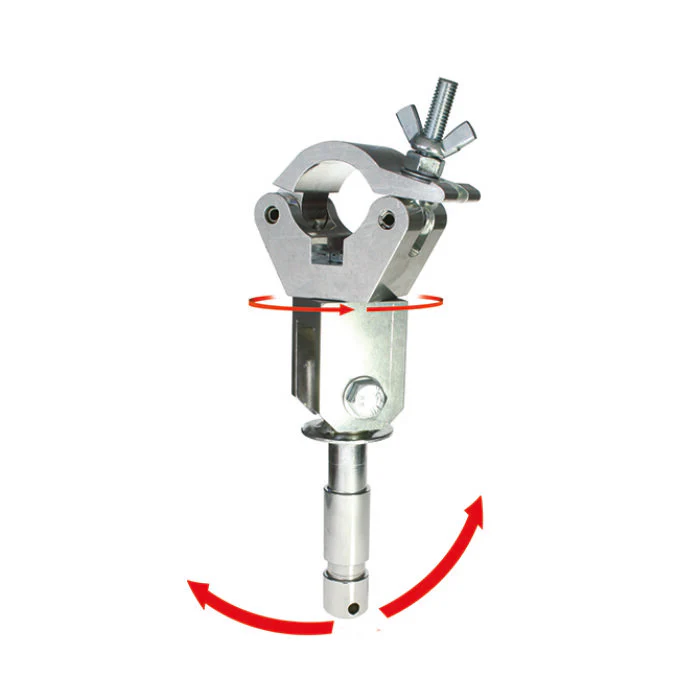

The Doughty Articulating Swivel Big Ben Clamp is supplied with a 1.1'' Spigot. This Clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands.

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide, factory fitted with a 28mm (1.10″) diameter TV spigot. This clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands. Available in polished silver.


Downloads:

Data Sheet



Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
  • Factory fitted with a 28mm (1.10″) diameter TV spigot
  • 360-degree rotation and swivel function for single-person rigging
  • Available in polished silver finish

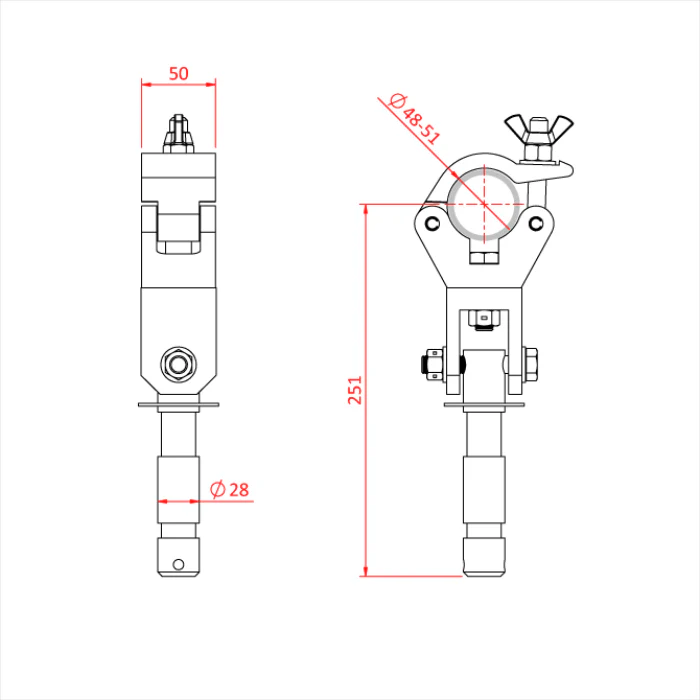

Specifications:

  • WLL: 200Kg
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")
  • Material: High tensile extruded aluminium
  • TV Spigot Diameter: 28mm (1.10″)



References:

  • Doughty Engineering
  • Model: Articulated Big Ben Clamp
  • Part Number: T57227




$40.93

Original: $116.95

-65%
Doughty Articulated Big Ben Clamp—

$116.95

$40.93

More Images

Doughty Articulated Big Ben Clamp - Image 2

Doughty Articulated Big Ben Clamp

Doughty Articulated Big Ben Clamp


The Doughty Articulating Swivel Big Ben Clamp is supplied with a 1.1'' Spigot. This Clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands.

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide, factory fitted with a 28mm (1.10″) diameter TV spigot. This clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands. Available in polished silver.


Downloads:

Data Sheet



Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
  • Factory fitted with a 28mm (1.10″) diameter TV spigot
  • 360-degree rotation and swivel function for single-person rigging
  • Available in polished silver finish



Specifications:

  • WLL: 200Kg
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")
  • Material: High tensile extruded aluminium
  • TV Spigot Diameter: 28mm (1.10″)



References:

  • Doughty Engineering
  • Model: Articulated Big Ben Clamp
  • Part Number: T57227




Product Information

Shipping & Returns

Description

Doughty Articulated Big Ben Clamp


The Doughty Articulating Swivel Big Ben Clamp is supplied with a 1.1'' Spigot. This Clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands.

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide, factory fitted with a 28mm (1.10″) diameter TV spigot. This clamp allows 360 degrees of rotation and also swivels to enable one person to rig a bar between two stands. Available in polished silver.


Downloads:

Data Sheet



Key Features:

  • High tensile extruded aluminium construction
  • Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubes
  • Factory fitted with a 28mm (1.10″) diameter TV spigot
  • 360-degree rotation and swivel function for single-person rigging
  • Available in polished silver finish



Specifications:

  • WLL: 200Kg
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")
  • Material: High tensile extruded aluminium
  • TV Spigot Diameter: 28mm (1.10″)



References:

  • Doughty Engineering
  • Model: Articulated Big Ben Clamp
  • Part Number: T57227
