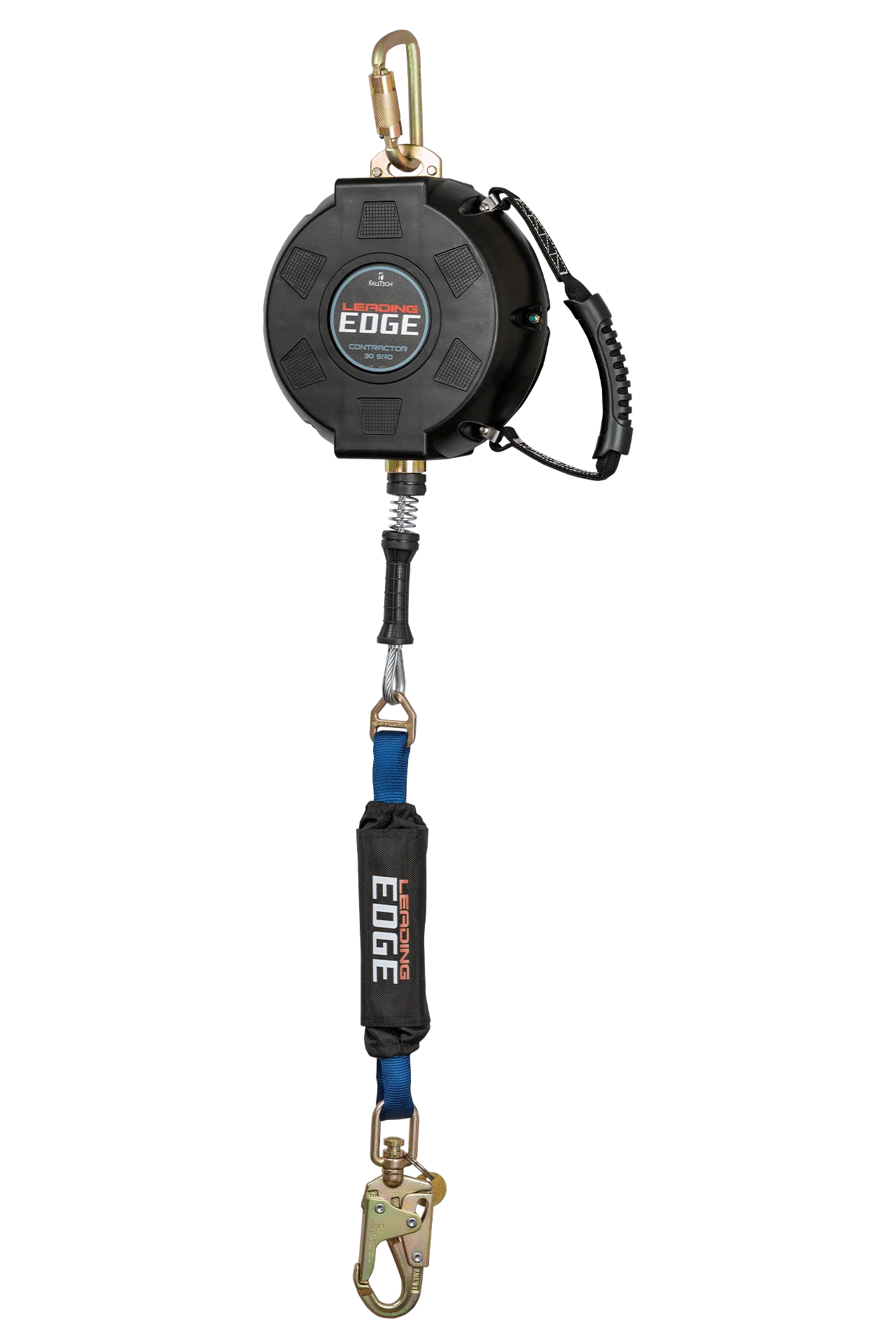

Contractor Leading Edge SRL with 30' Galvanized Steel Cable and Anchorage Carabiner - CSA
Contractor Leading Edge SRL with 30' Galvanized Steel Cable and Anchorage Carabiner - CSA
FEATURES
- 7/32" galvanized steel cable lifeline with load-indicating swivel snap hook
- Internal inertial braking system provides positive stopping action and uniform deceleration.
- Integrated external ViewPack® energy absorber strengthens the braking system and preserves lifeline integrity
- Durable glass-filled nylon housing extends service life
- Integrated lifeline hand-grip simplifies dorsal connection and recoil spring helps prevent lifeline lock-up
- Load-indicating snap hook provides visual fall event indication
- Complies with CSA Z259.2.2-17
MATERIAL SPECIFICATIONS
Cable: 7/32" galvanized steel; 3,400 lb min. static strength
Energy Absorber: Polyester tear-away
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lb min.
ANSI SRL Class/Type: Class 1 SRL-P
Avg. Arrest Force: 900 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 42"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 727620LE - 20' (ANSI Compliant)
- 727630LE - 30' (ANSI Compliant)
- C727630LE - 30' (CSA Compliant)
- 727650LE - 50' (ANSI Compliant)
- C727650LE - 50' (CSA Compliant)
DOWNLOADS
Instruction Manual (ANSI)
Instruction Manual (CSA)
Declaration of Conformity (ANSI)
Declaration of Conformity (CSA)
Sell Sheet/Brochure
COMPLIANT WITH:
CSA Z259.2.2-2017
OSHA 1926.502 and 1910.66
ANSI Z359.14-2021
