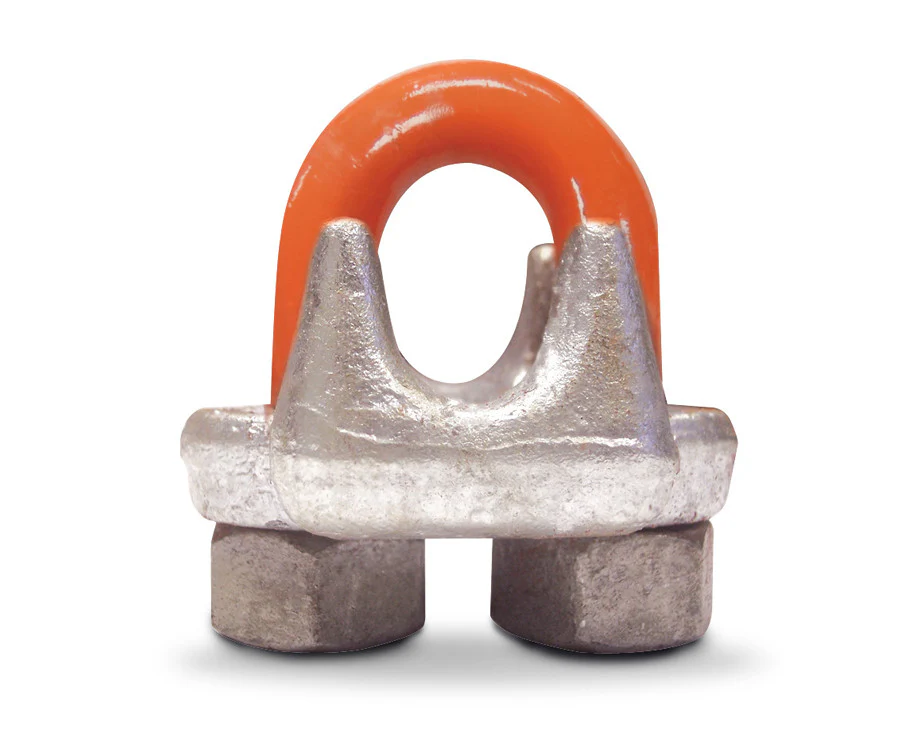

CM Wire Rope Clips
- DESCRIPTION
- SPECIFICATIONS
- FEATURES
- RESOURCES
Wire Rope Clips are used to secure the end of wire rope when forming a loop for wire rope turn-back, for example. CM’s Wire Rope Clips are durable and strong with a drop forged base and effective for multiple applications.
(1/4" & 3/8" are only sold in sets of 2)
- Precision manufactured and galvanized to meet federal specifications (FF-C-450 Type 1 Class 1) on 1/4" and larger.
- Drop forged base
| Dimensions (in.) | ||||||||||||
| Size (in.) | Product Code | A | B | C | D | E | F | G | H | Torque (ft-lb) | Rope Turnback | Weight (lbs.) |
| 1/4 | M246 | 5/16-18UNC | 1.03 | 0.50 | 0.75 | 0.66 | 0.56 | 1.19 | 1.44 | 15 | 4-3/4 | 0.18 |
| 3/8 | M248 | 7/16-14UNC | 1.50 | 0.75 | 1.00 | 0.91 | 0.75 | 1.63 | 1.94 | 45 | 6-1/2 | 0.42 |
| 1/2 | M250 | 1/2-13UNC | 1.88 | 1.00 | 1.19 | 1.16 | 0.88 | 1.91 | 2.31 | 65 | 11-1/2 | 0.85 |
