CM Limit Switch Shaft Assembly - 56 Tpi (Model J, Ll & Rr)
HomeStore

CM Limit Switch Shaft Assembly - 56 Tpi (Model J, Ll & Rr)

CM Limit Switch Shaft Assembly - 56 Tpi (Model J, Ll & Rr)

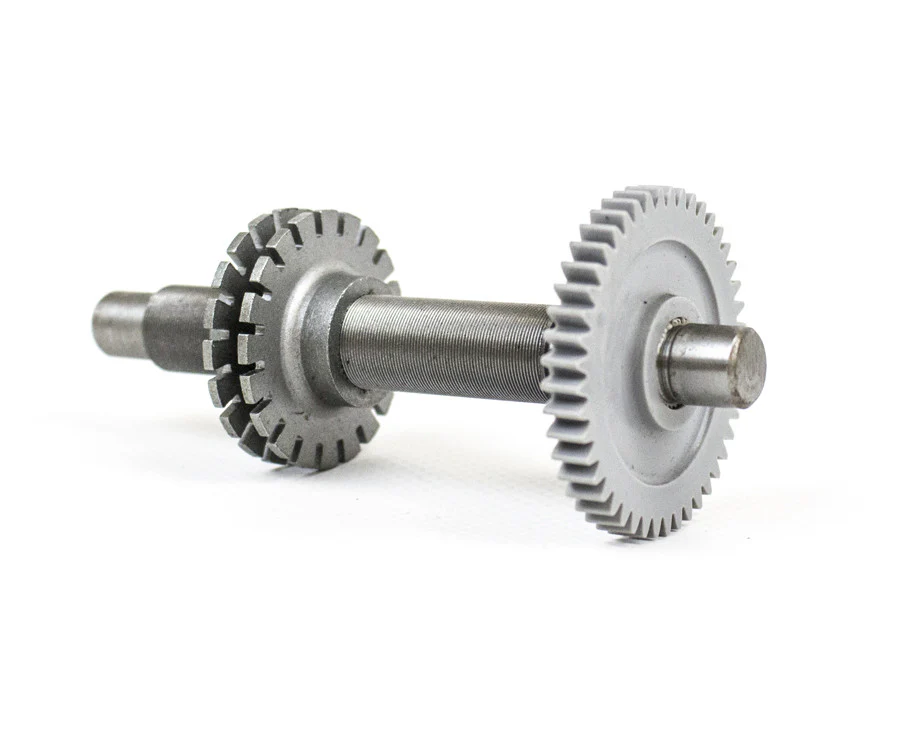

This Limit Switch Shaft Assembly contains a 56Ā TPI shaft and gearing for Next-Gen Lodestar Large Frame Model J, LL & RR hoists. Ā The chart below displays the maximum lift of each hoist using each of the different Limit Switch Shaft assemblies:

Maximum Lift - 44 TPI Shaft Maximum Lift - 56 TPI Shaft Maximum Lift - 64 TPI Shaft
Hoist Model meters feet meters feet meters feet
J & L 39 127 49 162 56 185
LL 76 250 97 318 111 363
R 20 64 25 81 28 93
RR 38 124 48 158 55 181
RRS 38 125 48 159 55 182
$321.73
CM Limit Switch Shaft Assembly - 56 Tpi (Model J, Ll & Rr)ā€”
$321.73
